Product Features
Modular design
Different power level of isolated or non-isolated modules AC/DC (Optional).
DC/DC unidirectional or bidirectional conversion modules(Optional)
MPPT module(Optional)
The ABU module (Optional)can be configured for parallel and off-grid switching(Optional)
Safe and ReIiabIe
IP55 design of battery cabinet, IP54 design of power cabinet
Perfect thermal management & Fault Detection Level Fire Protection System
Small-capacity design &Physical isolation& Controllable faults
Independent branch input

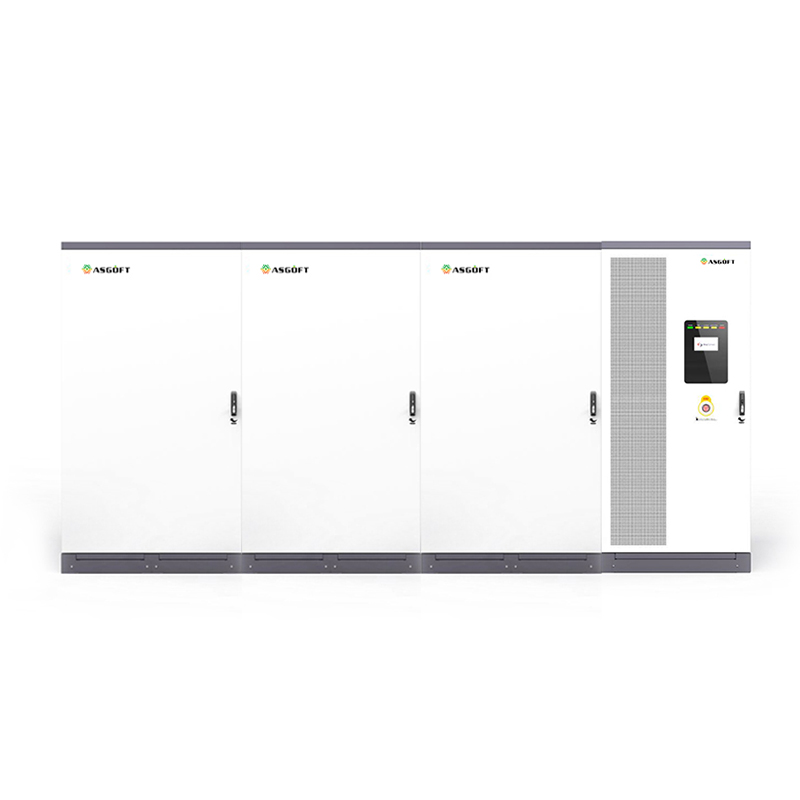

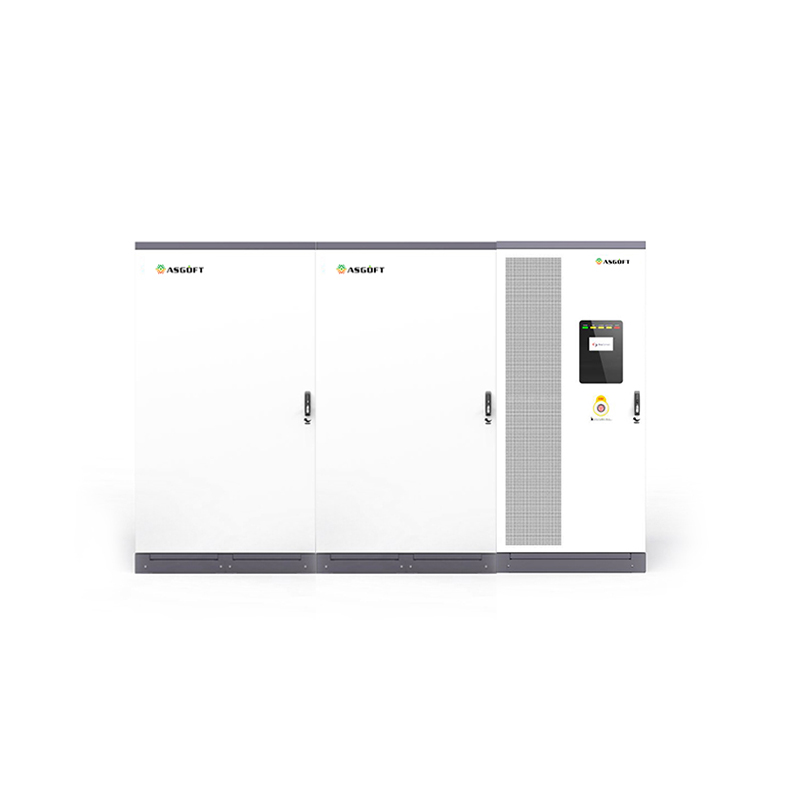

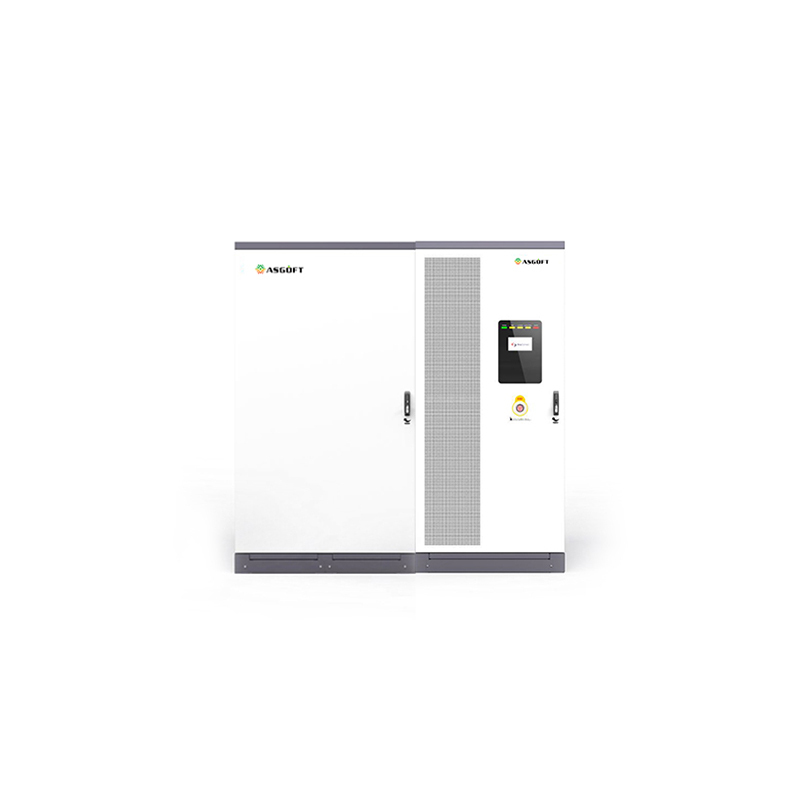

A single cluster (single cabinet) of batteries independently matches a set of power conversion
equipment, and a multi-battery cabinet corresponds to multiple sets of power conversion equipment in the power cabinet, without the risk of circulation.
Flexible configuration

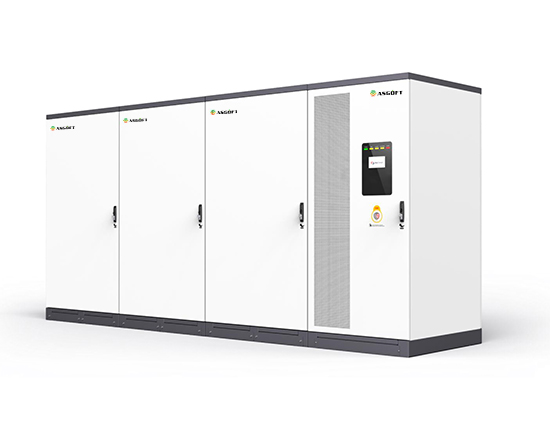

The outdoor cabinet design covers a small area. Power and battery cabinets can be configured as required.
Flexible capacity increase or decrease, multiple power cabinets and battery cabinets can be parallel to achieve greater capacity applications.
Support B2G energy storage battery and V2G/V2X power battery applications

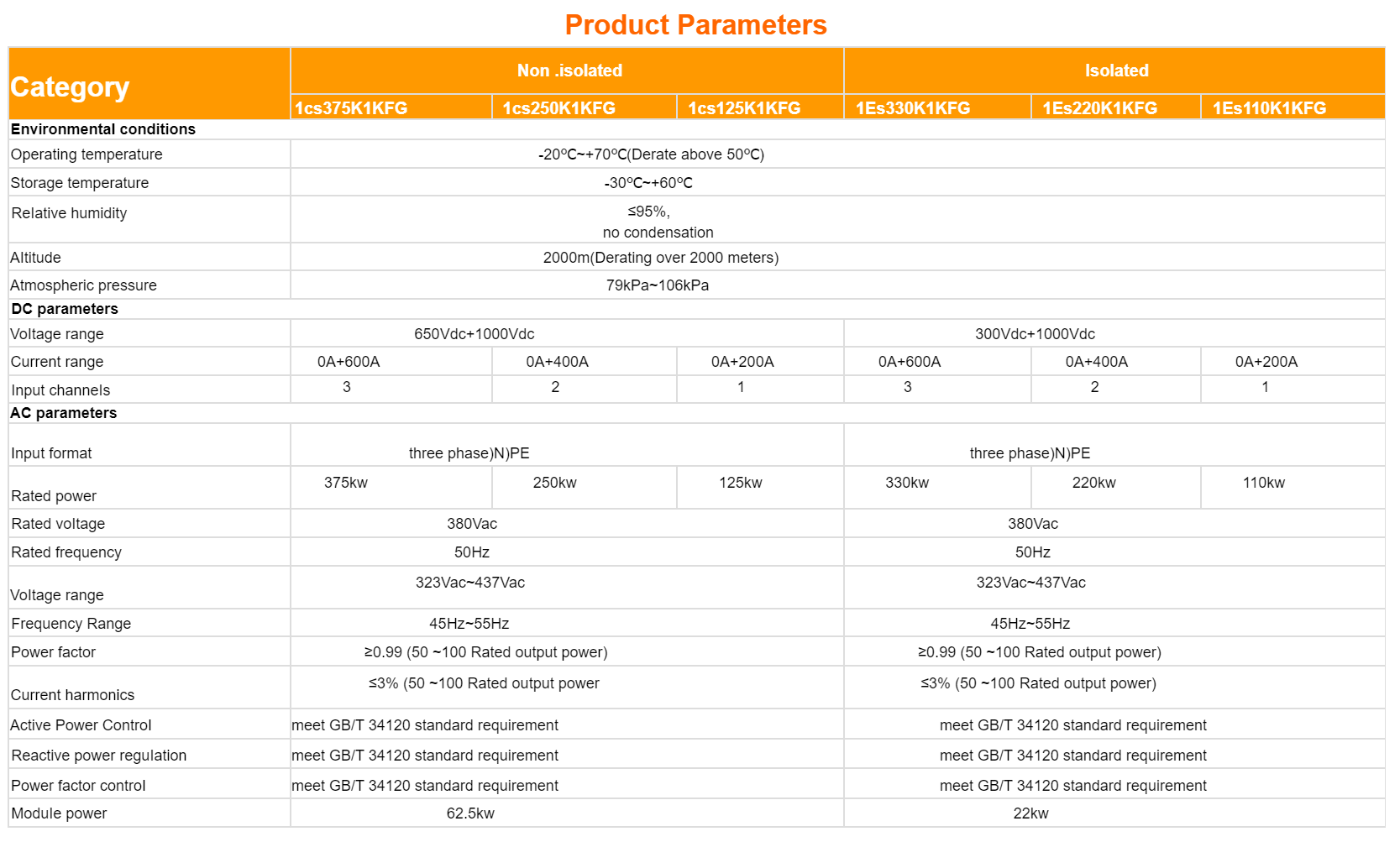

Product Parameters
|
Category |
Non .isoIated |
IsoIated |
||||
|
1cs375K1KFG |
1cs250K1KFG |
1cs125K1KFG |
1Es330K1KFG |
1Es220K1KFG |
1Es110K1KFG |
|
|
EnvironmentaI conditions |
||||||
|
Operating temperature |
-20℃~+70℃(Derate above 50℃) |
|||||
|
Storage temperature |
-30℃~+60℃ |
|||||
|
ReIative humidity |
≤95%, no condensation |
|||||
|
AItitude |
2000m(Derating over 2000 meters) |
|||||
|
Atmospheric pressure |
79kPa~106kPa |
|||||
|
DC parameters |
||||||
|
VoItage range |
650Vdc+1000Vdc |
300Vdc+1000Vdc |
||||
|
Current range |
0A+600A |
0A+400A |
0A+200A |
0A+600A |
0A+400A |
0A+200A |
|
Input channeIs |
3 |
2 |
1 |
3 |
2 |
1 |
|
AC parameters |
||||||
|
Input format |
three phase)N)PE |
three phase)N)PE |
||||
|
Rated power |
375kw |
250kw |
125kw |
330kw |
220kw |
110kw |
|
Rated voItage |
380Vac |
380Vac |
||||
|
Rated frequency |
50Hz |
50Hz |
||||
|
VoItage range |
323Vac~437Vac |
323Vac~437Vac |
||||
|
Frequency Range |
45Hz~55Hz |
45Hz~55Hz |
||||
|
Power factor |
≥0.99 (50 ~100 Rated output power) |
≥0.99 (50 ~100 Rated output power) |
||||
|
Current harmonics |
≤3% (50 ~100 Rated output power |
≤3% (50 ~100 Rated output power) |
||||
|
Active Power ControI |
meet GB/T 34120 standard requirement |
meet GB/T 34120 standard requirement |
||||
|
Reactive power reguIation |
meet GB/T 34120 standard requirement |
meet GB/T 34120 standard requirement |
||||
|
Power factor controI |
meet GB/T 34120 standard requirement |
meet GB/T 34120 standard requirement |
||||
|
ModuIe power |
62.5kw |
22kw |
||||

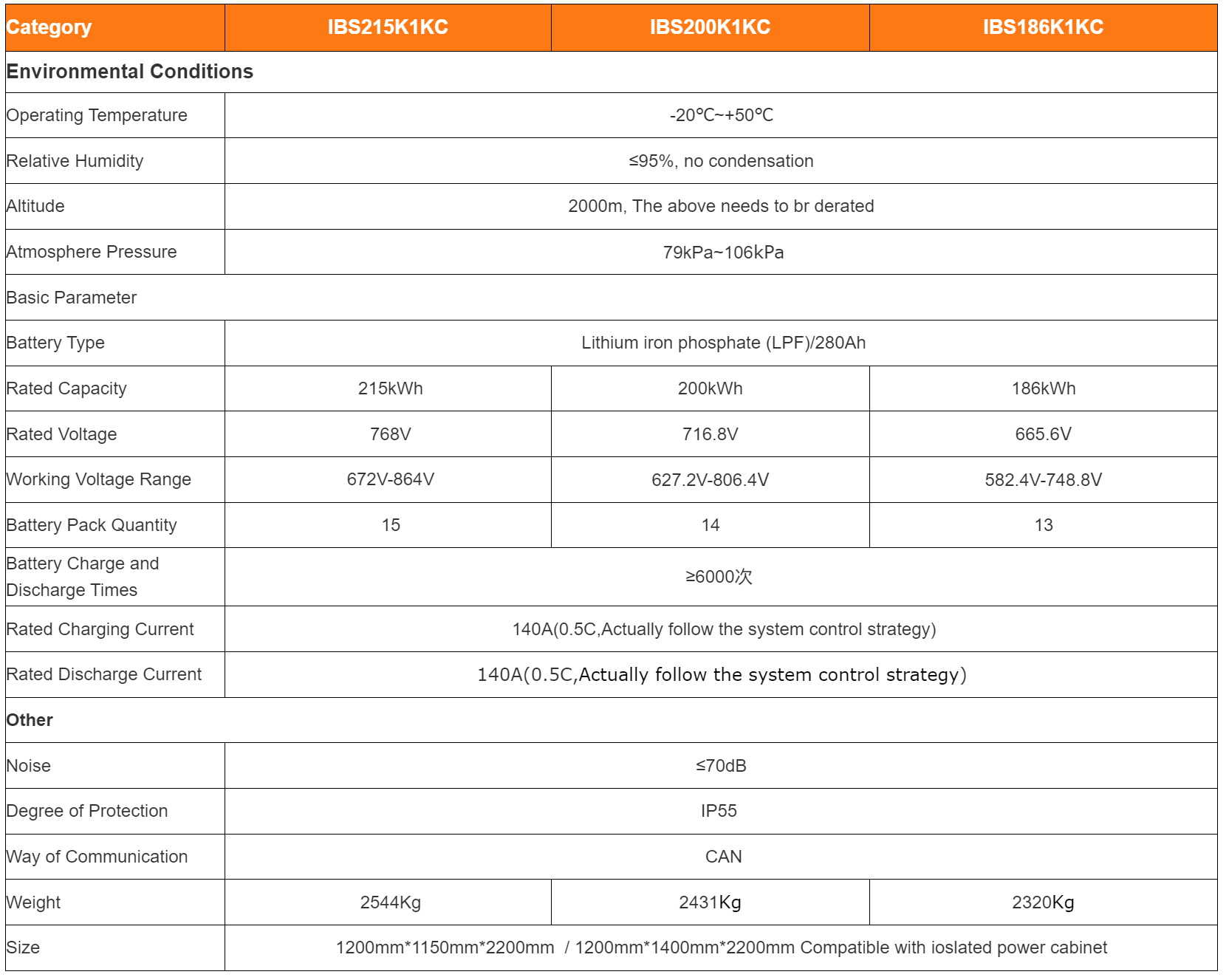

| Category | IBS215K1KC | IBS200K1KC | IBS186K1KC |
| Environmental Conditions | |||
| Operating Temperature | -20℃~+50℃ | ||
| Relative Humidity | ≤95%, no condensation | ||
| Altitude |
2000m, The above needs to br derated |
||
| Atmosphere Pressure | 79kPa~106kPa | ||
| Basic Parameter | |||
| Battery Type | Lithium iron phosphate (LPF)/280Ah | ||
| Rated Capacity | 215kWh | 200kWh | 186kWh |
| Rated Voltage | 768V | 716.8V | 665.6V |
| Working Voltage Range | 672V-864V | 627.2V-806.4V | 582.4V-748.8V |
| Battery Pack Quantity | 15 | 14 | 13 |
| Battery Charge and Discharge Times | ≥6000次 | ||
| Rated Charging Current | 140A(0.5C,Actually follow the system control strategy) | ||
| Rated Discharge Current | 140A(0.5C,Actually follow the system control strategy) | ||
| Other | |||
| Noise | ≤70dB | ||
| Degree of Protection | IP55 | ||
| Way of Communication | CAN | ||
| Weight | 2544Kg | 2431Kg | 2320Kg |
| Size | 1200mm*1150mm*2200mm / 1200mm*1400mm*2200mm Compatible with ioslated power cabinet | ||
