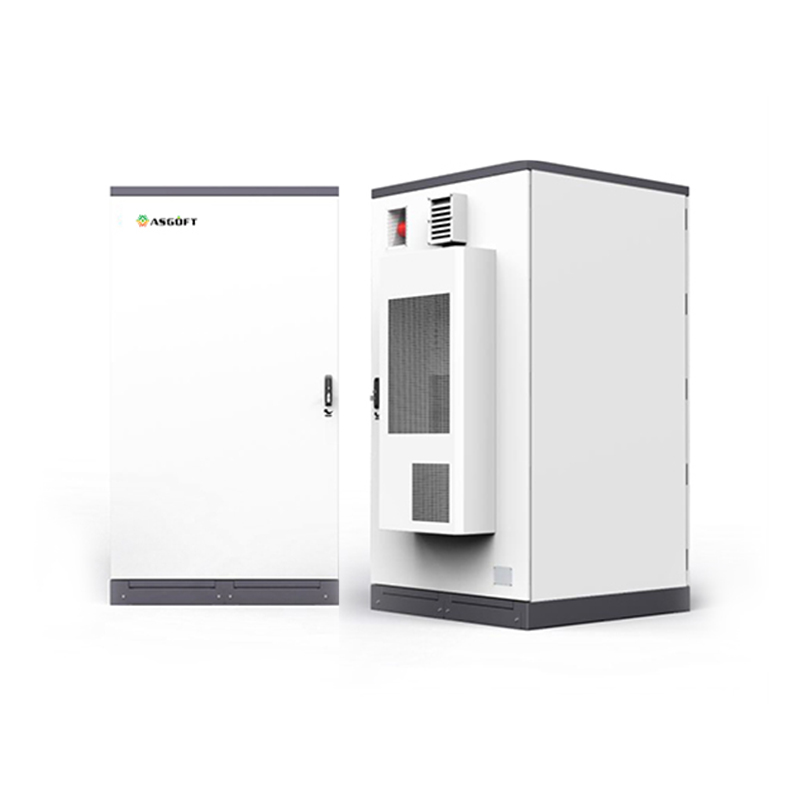

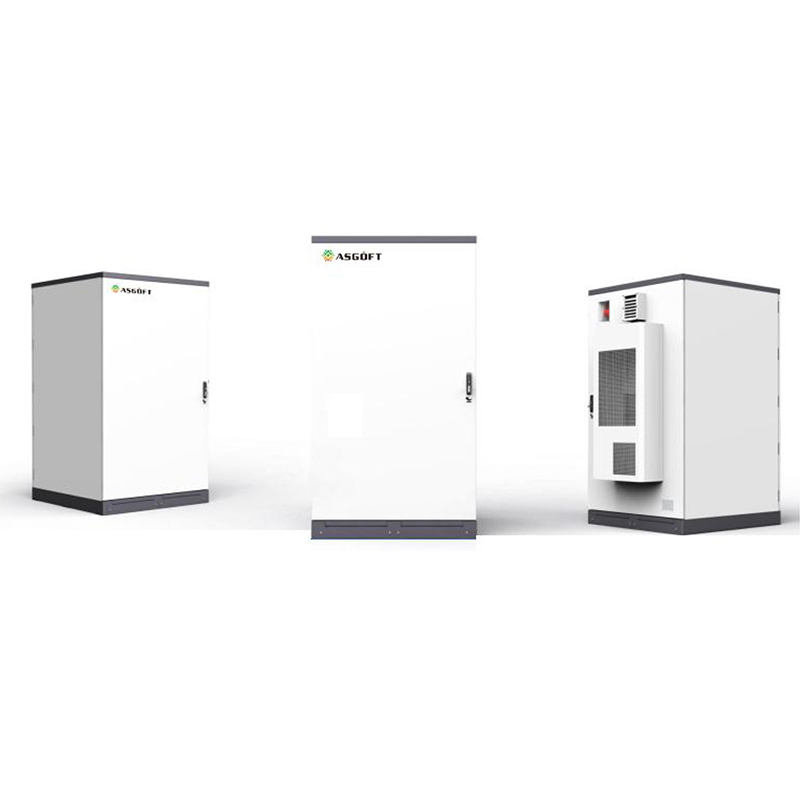

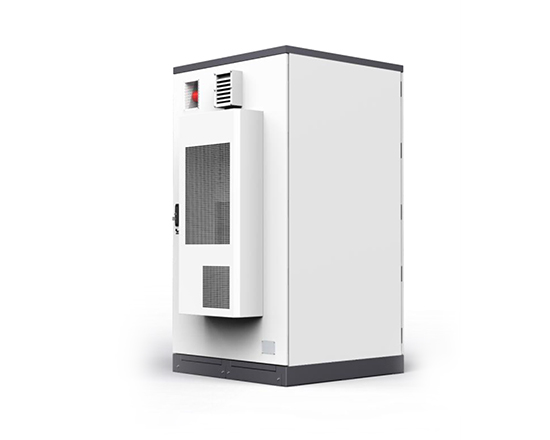

Commercial Energy Storage Battery Cabinet
——
ASGOFT's Industrial And Commercial Energy Storage System Adopts Cabinet Design
Product Features
Safe and ReIiabIe
IP55 design, constant temperature control by industrial air conditioning Perfect thermal management& Fault Detection Level Fire Protection System Small-capacity design&Physical isolation&Controllable faults
Independent branch input
A single cluster (single cabinet) of batteries independently matches a set of power conversion equipment, and a multi-battery cabinet corresponds to multiple sets of power conversion equipment in the power cabinet, without the risk of circulation.
Advanced Electric scheme design
Unified EMS control strategies Powerful integrated energy management platform Flexible customer customization support
FIexibIe configuration
Outdoor cabinet design, small footprint, it can be configured according to actual needs
Flexible capacity increase and decrease, suitable for industrial and commercial energy storage.

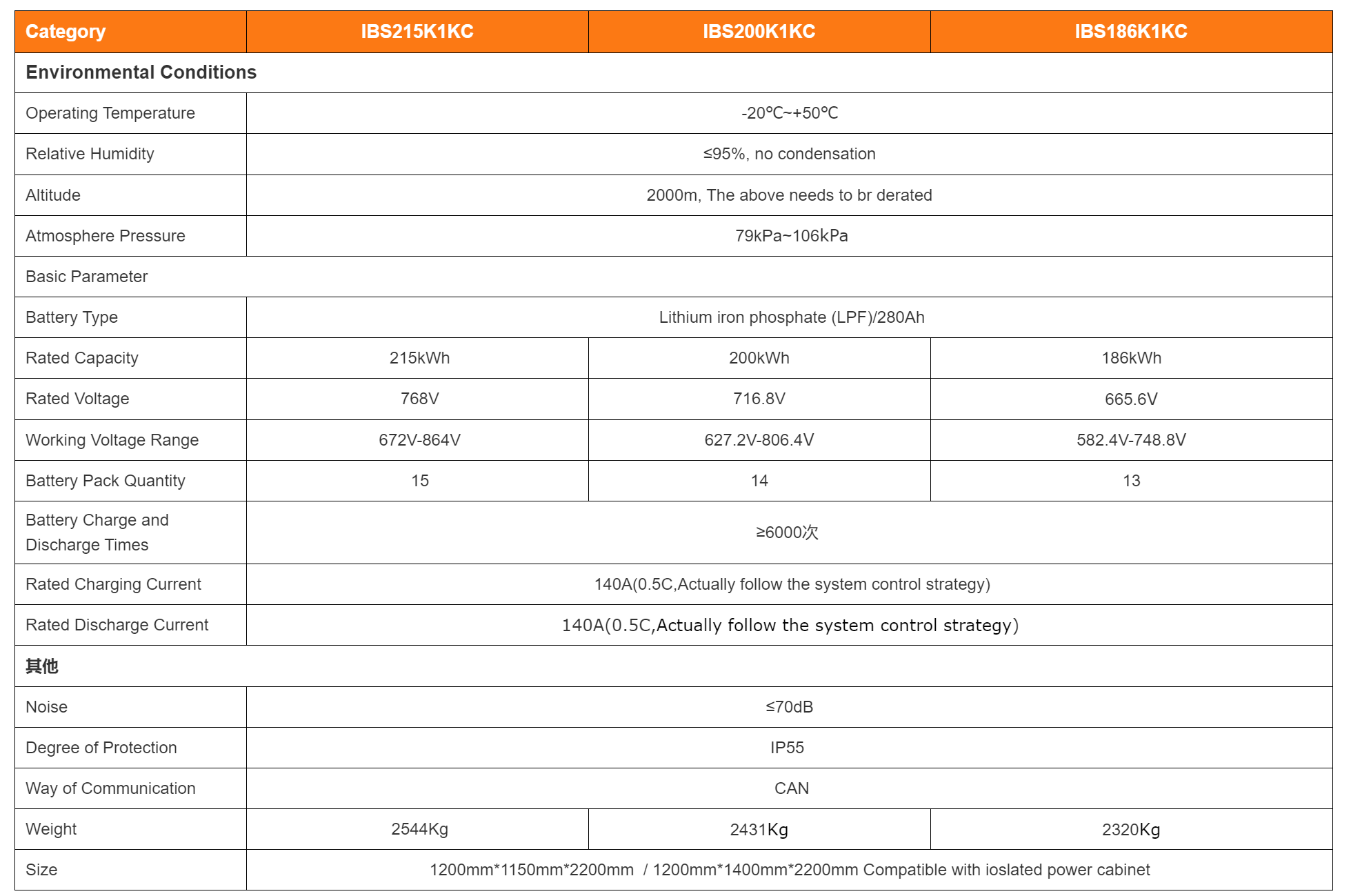

| Category | IBS215K1KC | IBS200K1KC | IBS186K1KC |
| Environmental Conditions | |||
| Operating Temperature | -20℃~+50℃ | ||
| Relative Humidity | ≤95%, no condensation | ||
| Altitude |
2000m, The above needs to br derated |
||
| Atmosphere Pressure | 79kPa~106kPa | ||
| Basic Parameter | |||
| Battery Type | Lithium iron phosphate (LPF)/280Ah | ||
| Rated Capacity | 215kWh | 200kWh | 186kWh |
| Rated Voltage | 768V | 716.8V | 665.6V |
| Working Voltage Range | 672V-864V | 627.2V-806.4V | 582.4V-748.8V |
| Battery Pack Quantity | 15 | 14 | 13 |
| Battery Charge and Discharge Times | ≥6000次 | ||
| Rated Charging Current | 140A(0.5C,Actually follow the system control strategy) | ||
| Rated Discharge Current | 140A(0.5C,Actually follow the system control strategy) | ||
| 其他 | |||
| Noise | ≤70dB | ||
| Degree of Protection | IP55 | ||
| Way of Communication | CAN | ||
| Weight | 2544Kg | 2431Kg | 2320Kg |
| Size | 1200mm*1150mm*2200mm / 1200mm*1400mm*2200mm Compatible with ioslated power cabinet | ||
