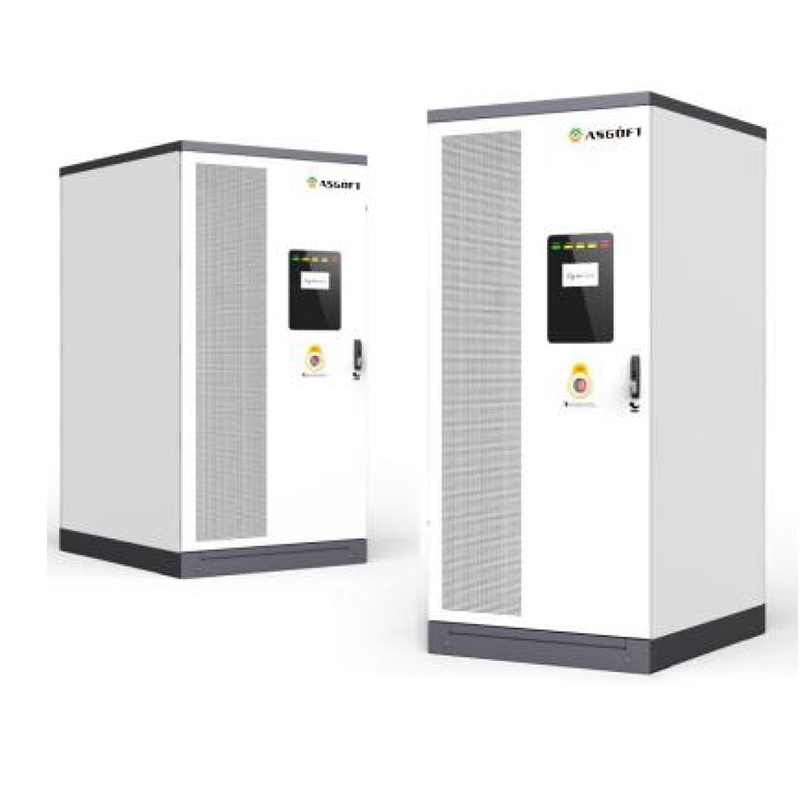

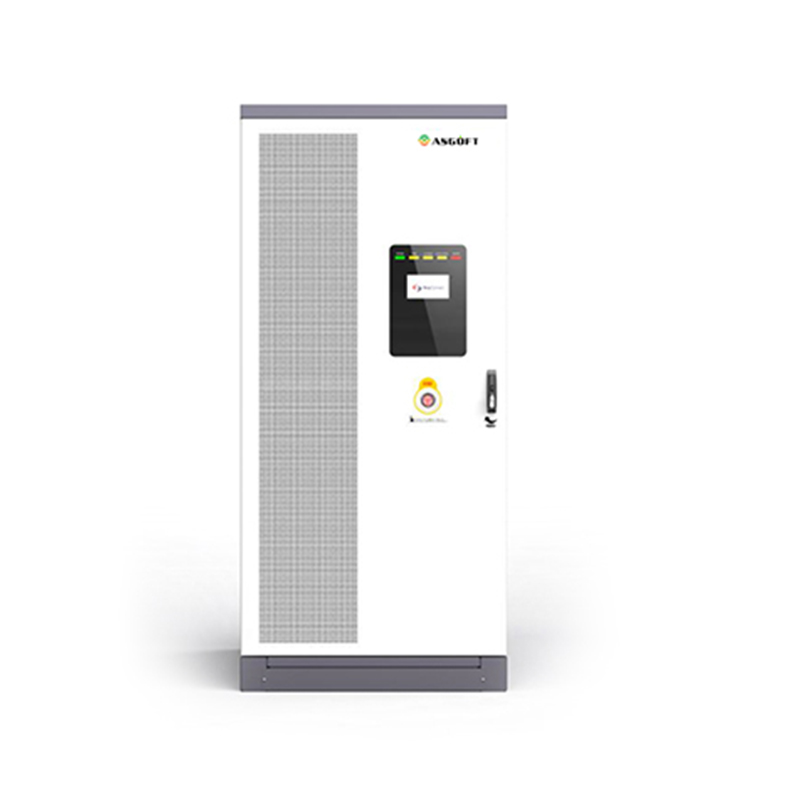

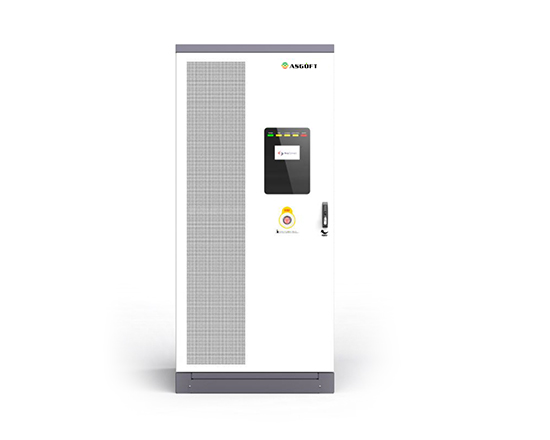

Energy Storage Power Cabinet
——
Energy Storage Power Cabinet
——
Product Features
Modular design
Different power level of isolated or non-isolated modules AC/DC (Optional).
DC/DC unidirectional or bidirectional conversion modules(Optional)
MPPT module(Optional)
The ABU module (Optional) can be configured for parallel and off-grid switching(Optional)
High voltage DC busbar
Able to connect to photovoltaic to realize photovoltaic consumption
Able to connect to DC load such as electric vehicle charging pile
Access to DC microgrid
Efficient conversion
Three-level topology with the maximum conversion efficiency of 98.7%
Adopt the third generation semiconductor SiC device, high conversion efficiency
Flexible configuration

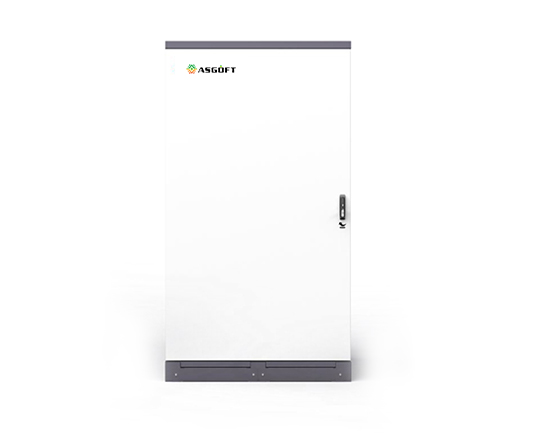

The outdoor cabinet design covers a small area. Power and battery cabinets can be configured as required.

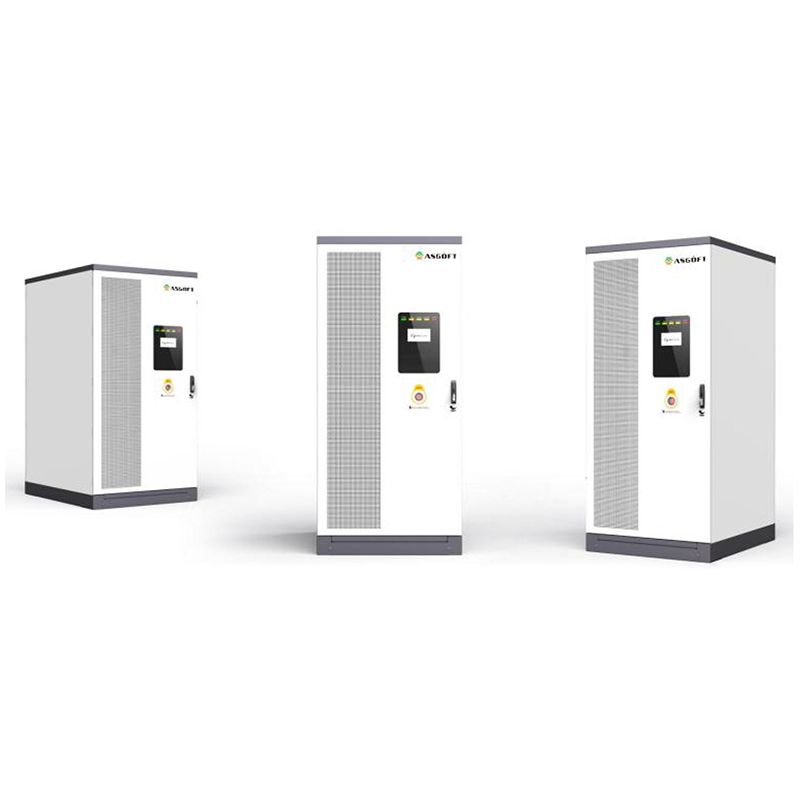

Flexible capacity increase or decrease, multiple power cabinets and battery cabinets can be parallel to achieve greater capacity applications.
Support B2G energy storage battery and V2G/V2X power battery applications

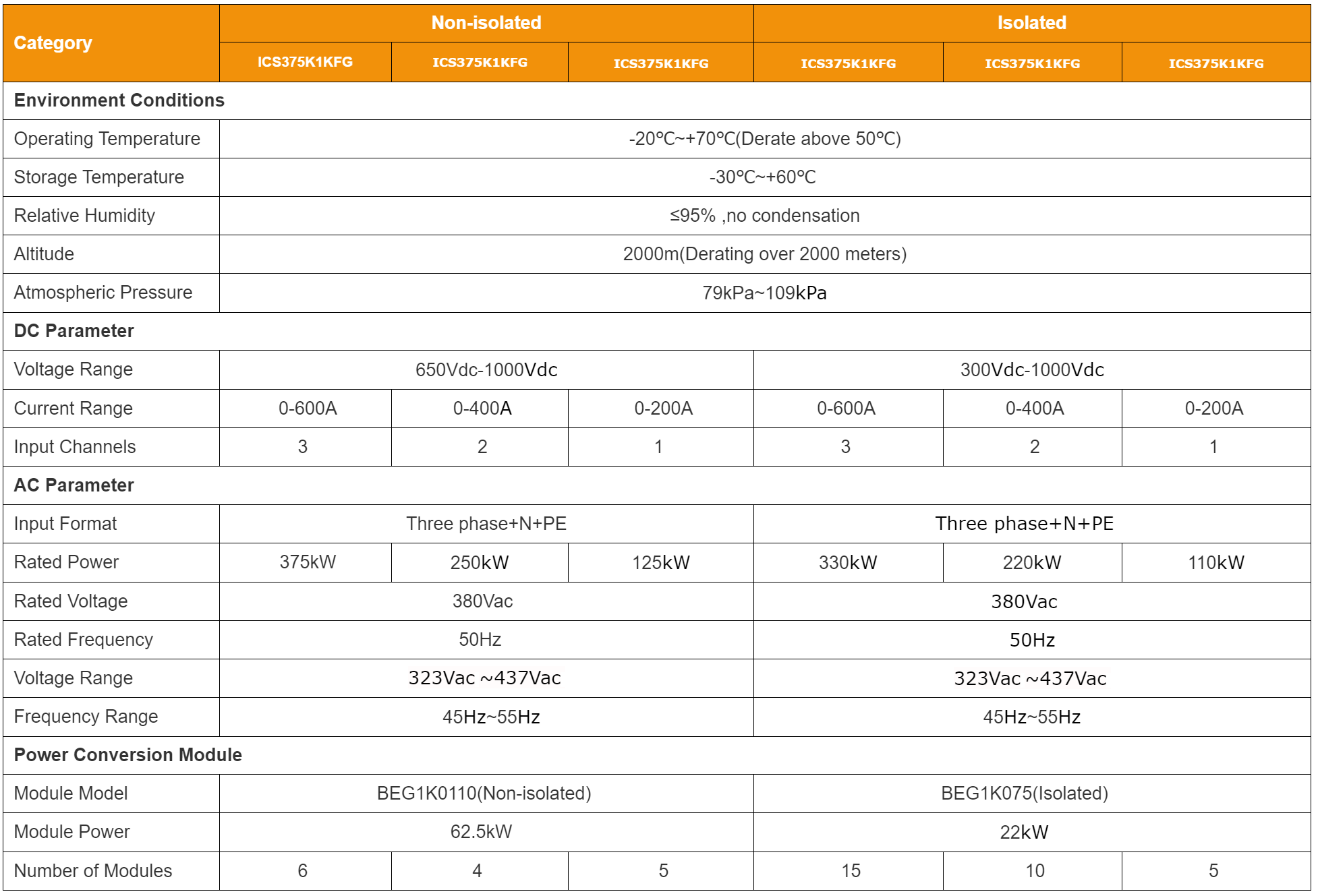

| Category | Non-isolated | Isolated | ||||
| ICS375K1KFG | ICS375K1KFG | ICS375K1KFG | ICS375K1KFG | ICS375K1KFG | ICS375K1KFG | |
| Environment Conditions | ||||||
| Operating Temperature | -20℃~+70℃(Derate above 50℃) | |||||
| Storage Temperature | -30℃~+60℃ | |||||
| Relative Humidity | ≤95% ,no condensation | |||||
| Altitude | 2000m(Derating over 2000 meters) | |||||
| Atmospheric Pressure | 79kPa~109kPa | |||||
| DC Parameter | ||||||
| Voltage Range | 650Vdc-1000Vdc | 300Vdc-1000Vdc | ||||
| Current Range | 0-600A | 0-400A | 0-200A | 0-600A | 0-400A | 0-200A |
| Input Channels | 3 | 2 | 1 | 3 | 2 | 1 |
| AC Parameter | ||||||
| Input Format | Three phase+N+PE | Three phase+N+PE | ||||
| Rated Power | 375kW | 250kW | 125kW | 330kW | 220kW | 110kW |
| Rated Voltage | 380Vac | 380Vac | ||||
| Rated Frequency | 50Hz | 50Hz | ||||
| Voltage Range | 323Vac ~437Vac | 323Vac ~437Vac | ||||
| Frequency Range | 45Hz~55Hz | 45Hz~55Hz | ||||
| Power Conversion Module | ||||||
| Module Model | BEG1K0110(Non-isolated) | BEG1K075(Isolated) | ||||
| Module Power | 62.5kW | 22kW | ||||
| Number of Modules | 6 | 4 | 5 | 15 | 10 | 5 |
