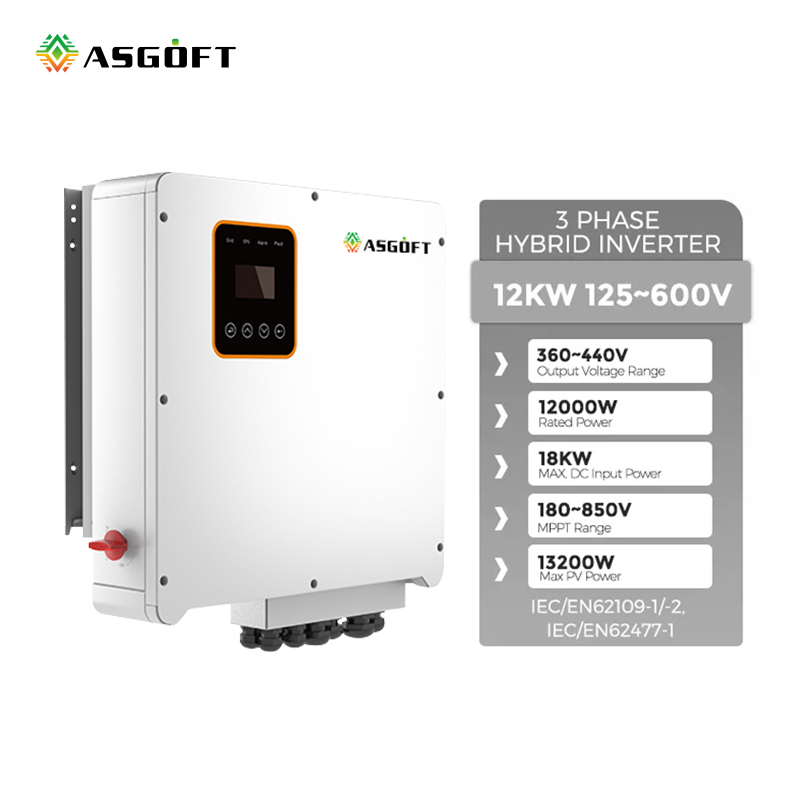

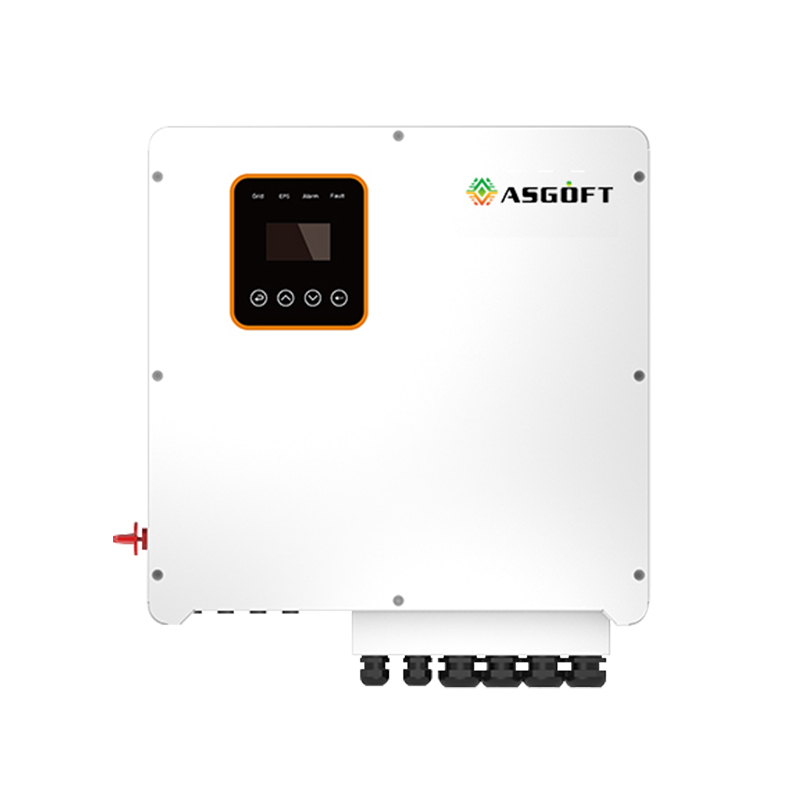

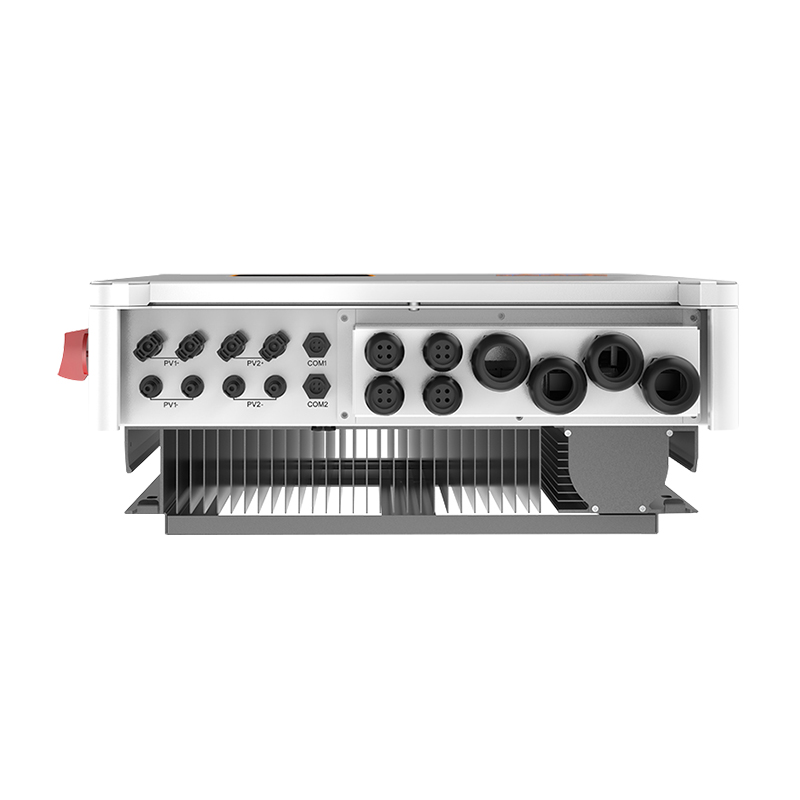

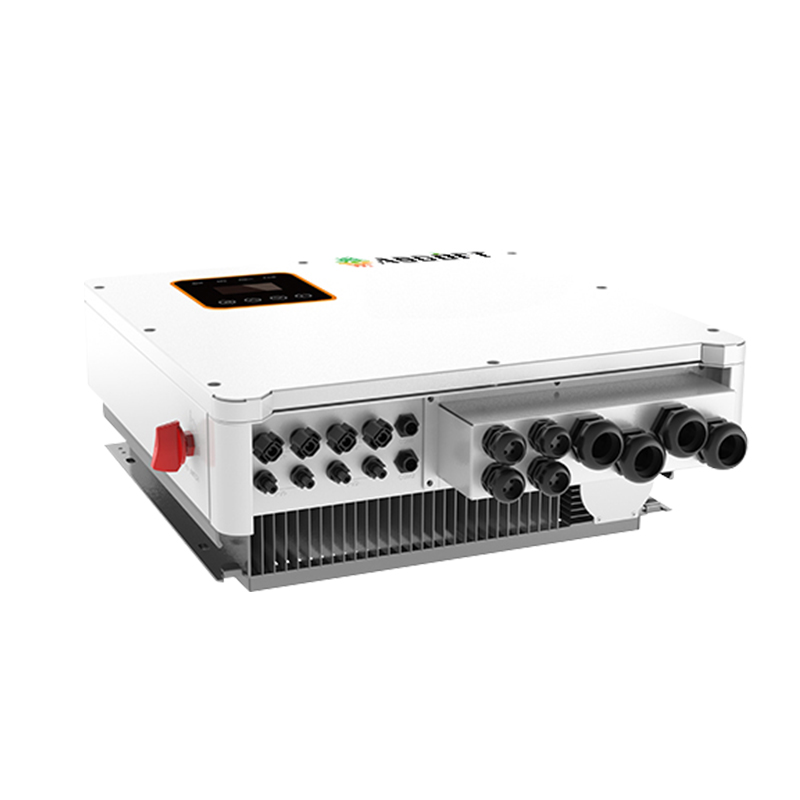

Three-phase Ess Hybrid Inverter
——
Three-phase Ess Hybrid Inverter
——
Product Features
High efficiency
Advanced MPPT with up to 99.9% efficiency
Multiple charge and discharge modes are available
Flexible configuration
Support PV, diesel generator, battery, load at the same time access, also has strong adaptability, support black start;
Various working modes can be set flexibly
Reliable
Outputs high quality pure sine wave AC power
360 degree of security from hardware to software
Economical and practical
It is more economical to support multiple operating modes;
Can be as a UPS for the important loads when power off

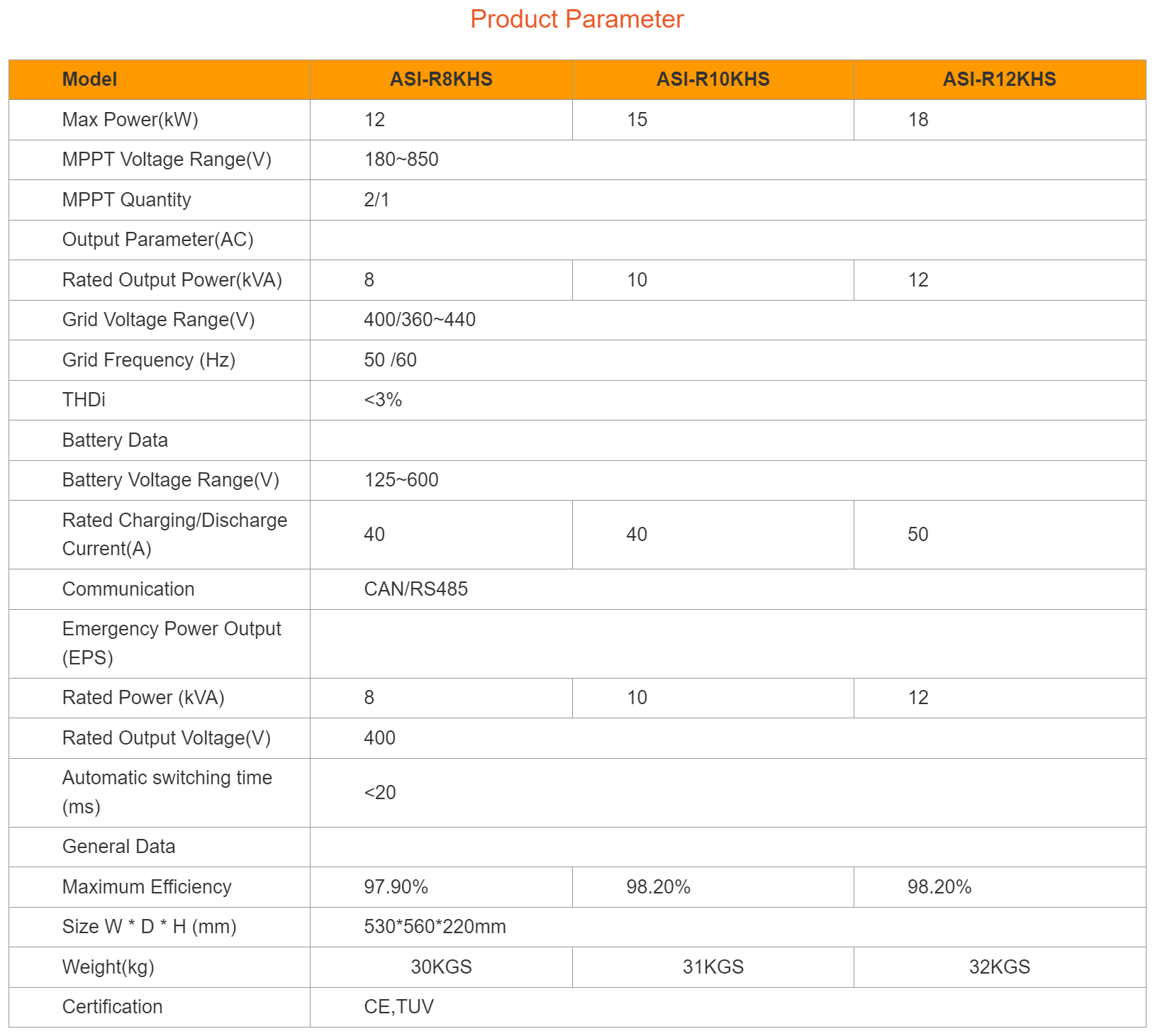

Product Parameter
|
Model |
ASI-R8KHS | ASI-R10KHS | ASI-R12KHS |
|
Max Power(kW) |
12 |
15 |
18 |
|
MPPT Voltage Range(V) |
180~850 |
||
|
MPPT Quantity |
2/1 |
||
|
Output Parameter(AC) |
|||
|
Rated Output Power(kVA) |
8 |
10 |
12 |
|
Grid Voltage Range(V) |
400/360~440 |
||
|
Grid Frequency (Hz) |
50 /60 |
||
|
THDi |
<3% |
||
|
Battery Data |
|||
|
Battery Voltage Range(V) |
125~600 |
||
|
Rated Charging/Discharge Current(A) |
40 |
40 |
50 |
|
Communication |
CAN/RS485 |
||
|
Emergency Power Output (EPS) |
|||
|
Rated Power (kVA) |
8 |
10 |
12 |
|
Rated Output Voltage(V) |
400 |
||
|
Automatic switching time (ms) |
<20 |
||
|
General Data |
|||
|
Maximum Efficiency |
97.90% |
98.20% |
98.20% |
|
Size W * D * H (mm) |
530*560*220mm |
||
|
Weight(kg) |
30KGS | 31KGS | 32KGS |
|
Certification |
CE,TUV |
||
