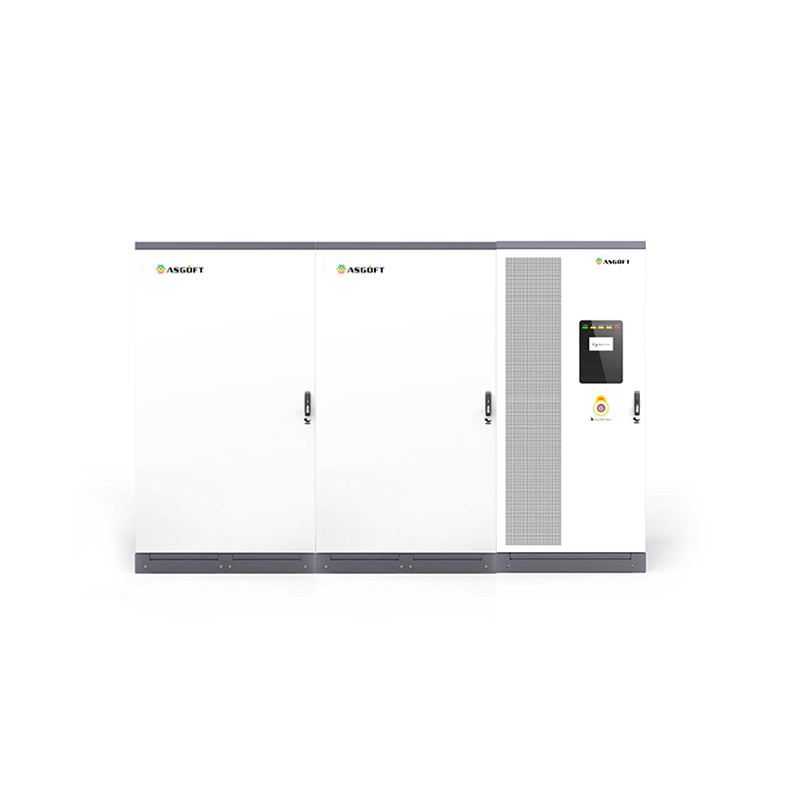

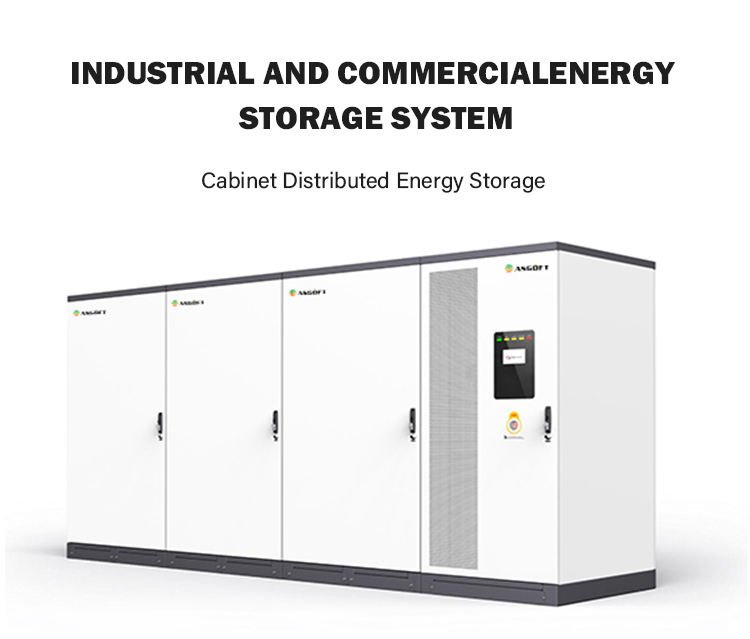

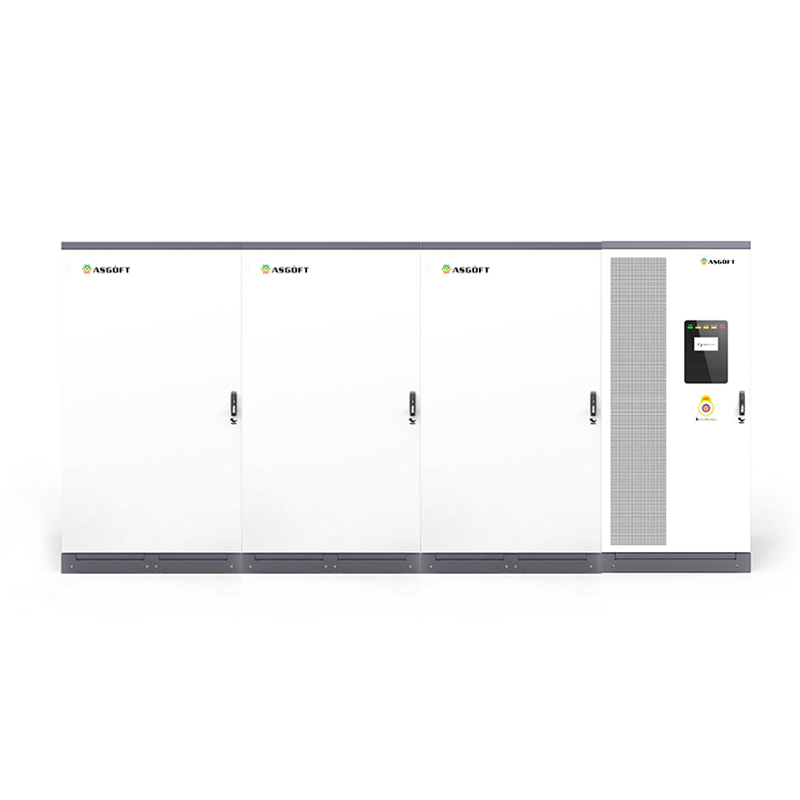

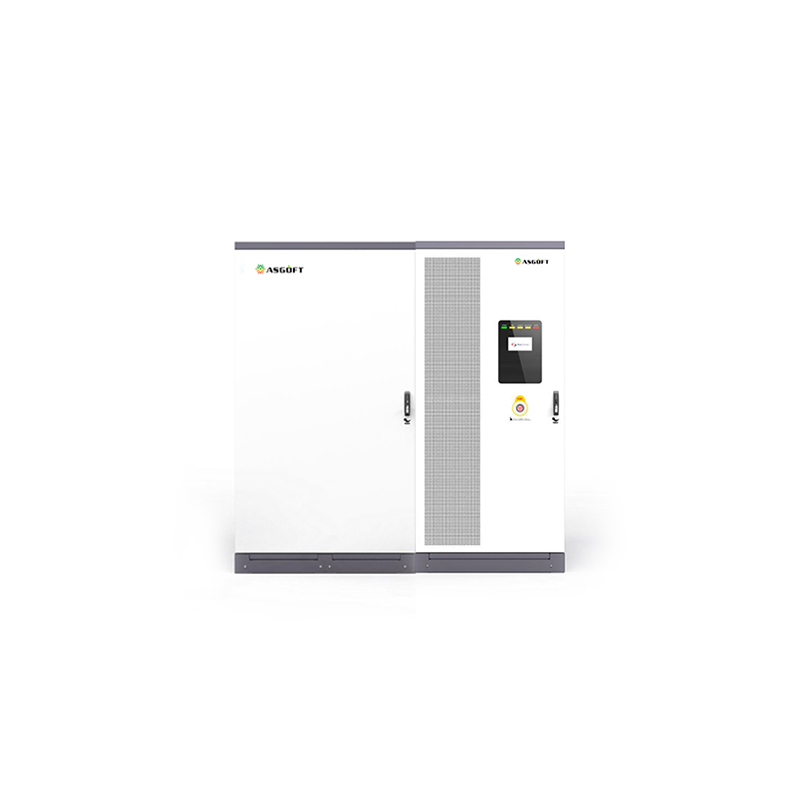

Energy Storage Power Cabinet 1MWH 466KWH 215KWH lithium solar battery industrial commercial solar power station generator ESS

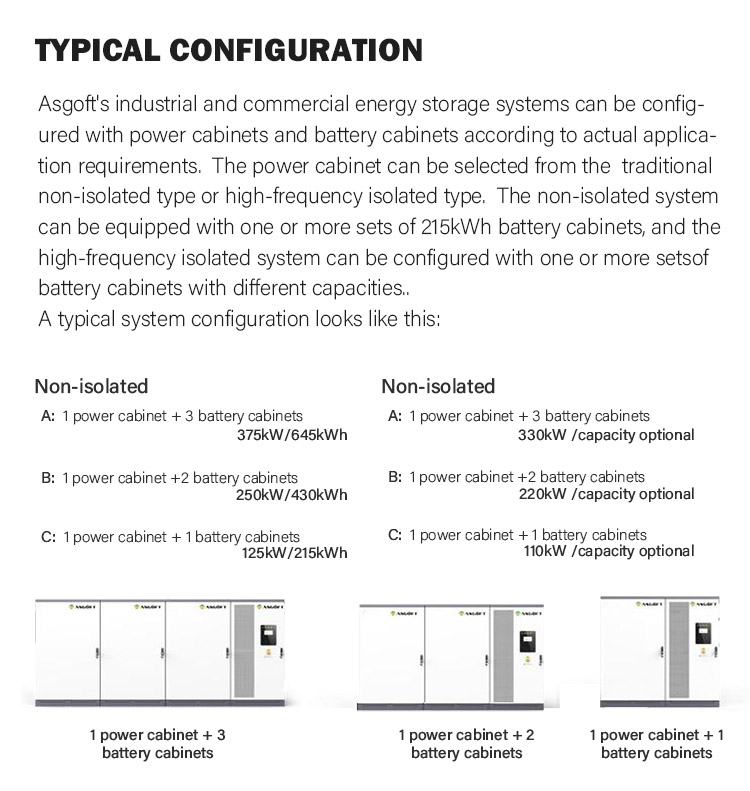

| Category | Non .isolated | Isolated | ||||
| 1cs375K1KFG | 1cs250K1KFG | 1cs125K1KFG | 1ES330K1KFG | 1Es220K1KFG | 1ES110K1KFG | |
| Environmental conditions | ||||||
| Operating temperature | -20°C~+70°C(Derate above 50°C) | |||||
| Storage temperature | -30°C-+60°C | |||||
| Relative humidity | <95 % no condensation | |||||
| Altitude | 2000m(Derating over 2000 meters) | |||||
| Atmospheric pressure | 79kPa~106kPa | |||||
| DC parameters | ||||||
| Voltage range | 650Vdc+1000Vdc | 300Vdc+1000Vdc | ||||
| Current range | 0A+600A | 0A+400A | 0A+200A | 0A+600A | 0A+400A | 0A+200A |
| Input channels | 3 | 2 | 1 | 3 | 2 | 1 |
| AC parameters | ||||||
| Input format | three phase)N)PE2 | three phase)N)PE | ||||
| Rated power | 375kw | 250kw | 125kw | 330kw | 220kw | 110kw |
| Rated voltage | 380Vac | 380Vac | ||||
| Rated frequency | 50Hz | 50Hz | ||||
| Voltage range | 323Vac~437Vac | 323Vac~437Vac | ||||
| Frequency Range | 45HZ~55Hz | 45HZ~55Hz | ||||
| Power factor | ≥0.99(50~100 Rated output power) | ≥0.99(50~100 Rated output power) | ||||
| Current harmonics | ≤3%(50-100 Rated output power | ≤3%(50-100 Rated output power | ||||
| Active Power Control | meet GB/T 34120 standard requirement | meet GB/T 34120 standard requirement | ||||
| Reactive power regulation | meet GB/T 34120 standard requirement | meet GB/T 34120 standard requirement | ||||
| Power factor control | meet GB/T 34120 standard requirement | meet GB/T 34120 standard requirement | ||||
| Module power | 62.5kw | 22kw | ||||
| Category | IBS215K1KC | IBS200K1KC | IBS186K1KC |
| Environmental Conditions | |||
| Operating Temperature | -20°C~+50°C | ||
| Relative Humidity | ≤95%, no condensation | ||
| Altitude | 2000m, The above needs to br derated | ||
| Atmosphere Pressure | 79kPa~106kPa | ||
| Basic Parameter | |||
| Battery Type | Lithium iron phosphate(LPF)/280Ah | ||
| Rated Capacity | 215kWh | 200kWh | 186kwh |
| Rated Voltage | 768V | 716.8V | 665.6V |
| Working Voltage Range | 672V-864V | 627.2V-806.4V | 582.4V-748.8V |
| Battery Pack Quantity | 15 | 14 | 13 |
| Battery Charge and Discharge Times | ≥6000次 | ||
| Rated Charging Current | 140A(0.5C,Actually follow the system control strategy) | ||
| Rated Discharge Current | 140A(0.5CActually follow the system control strategy) | ||
| Other | |||
| Noise | ≤70dB | ||
| Degree of Protection | IP55 | ||
| Way of Communication | CAN | ||
| Weight | 2544Kg | 2431Kq | 2320Kg |
| Size | 1200mm*1150mm*2200mm /1200mm*1400mm*2200mm Compatible with ioslated power cabinet | ||
