Off-grid Inverter
All-in-one-ASI-5500P
——
Off-grid Inverter
All-in-one-ASI-5500P
——
Product Features
High efficiency
Advanced MPPT with up to 99.9% efficiency
Multiple charge and discharge modes are available
Compatiblity
Support for many types of batteries
Support BMS communication from Li-ion battery
Reliable
Outputs high quality pure sine wave AC power
Support parallel connection to 33KW
Industrial design with a modern aesthetic look
Easy to install and simple to use

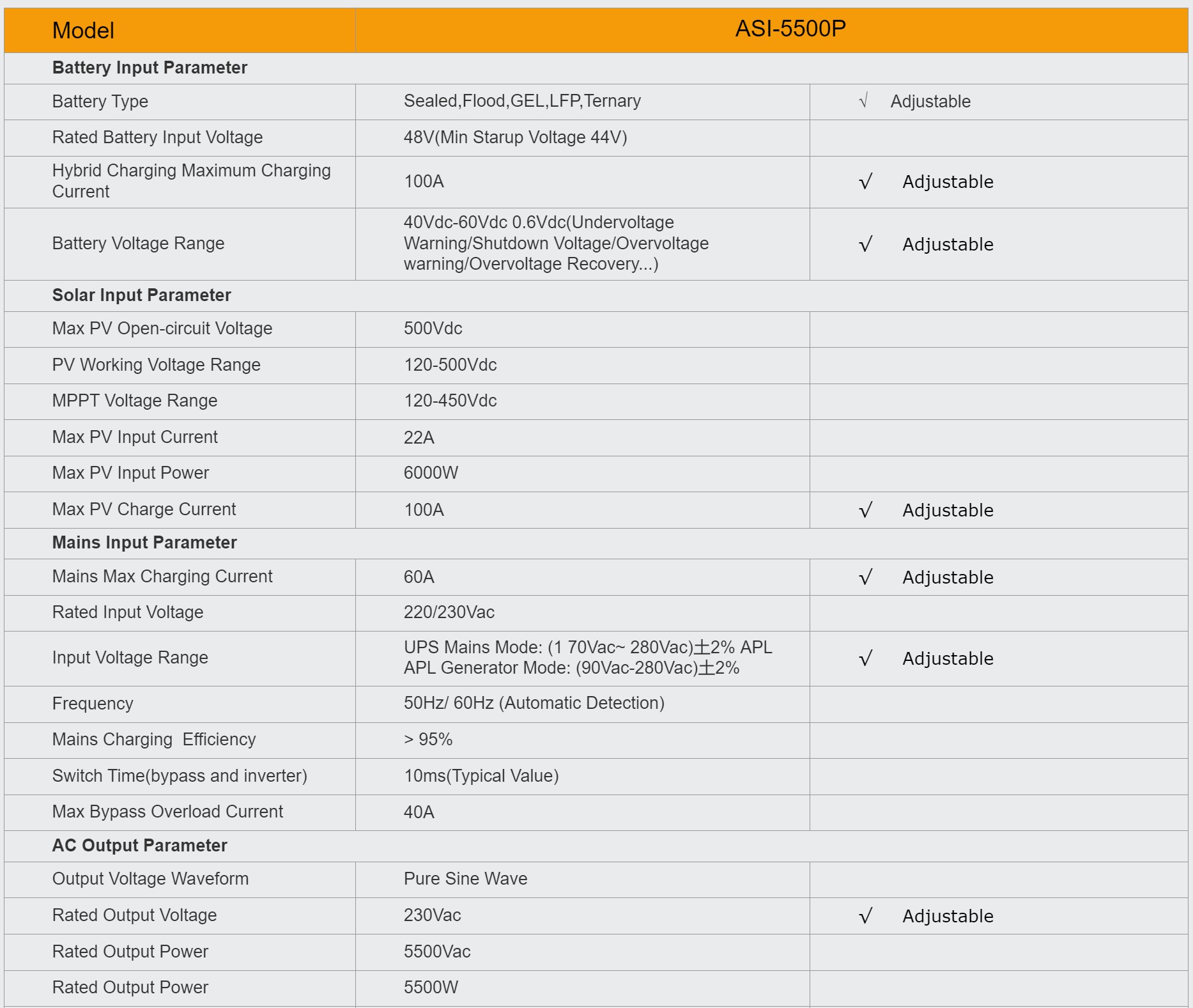

Product Parameter
|
Model |
ASI-5500P |
|
|
Battery Input Parameter |
||
|
Battery Type |
Sealed,Flood,GEL,LFP,Ternary |
√ Adjustable |
|
Rated Battery Input Voltage |
48V(Min Starup Voltage 44V) |
|
|
Hybrid Charging Maximum Charging Current |
100A |
√ Adjustable |
|
Battery Voltage Range |
40Vdc-60Vdc 0.6Vdc(Undervoltage Warning/Shutdown Voltage/Overvoltage warning/Overvoltage Recovery...) |
√ Adjustable |
|
Solar Input Parameter |
||
|
Max PV Open-circuit Voltage |
500Vdc |
|
|
PV Working Voltage Range |
120-500Vdc |
|
|
MPPT Voltage Range |
120-450Vdc |
|
|
Max PV Input Current |
22A |
|
|
Max PV Input Power |
6000W |
|
|
Max PV Charge Current |
100A |
√ Adjustable |
|
Mains Input Parameter |
||
|
Mains Max Charging Current |
60A |
√ Adjustable |
|
Rated Input Voltage |
220/230Vac |
|
|
Input Voltage Range |
UPS Mains Mode: (1 70Vac~ 280Vac)土2% APL APL Generator Mode: (90Vac-280Vac)土2% |
√ Adjustable |
|
Frequency |
50Hz/ 60Hz (Automatic Detection) |
|
|
Mains Charging Efficiency |
> 95% |
|
|
Switch Time(bypass and inverter) |
10ms(Typical Value) |
|
|
Max Bypass Overload Current |
40A |
|
|
AC Output Parameter |
||
|
Output Voltage Waveform |
Pure Sine Wave |
|
|
Rated Output Voltage |
230Vac |
√ Adjustable |
|
Rated Output Power |
5500Vac |
|
|
Rated Output Power |
5500W |
|
|
Peak Power |
11000VA |
|
|
On-load Motor Capacity |
4HP |
|
|
Output Frequency Range(Hz) |
50Hz土0.3Hz/60Hz+0.3Hz |
√ Adjustable |
|
Max Efficiency |
> 92% |
|
|
No-load Loss |
Non Energy-saving Mode:≤50W Energy-saving Mode:≤25W (Manual Setup) |
|
|
Basic Parameter |
||
|
Number of parallel/split phases |
1-6PCS |
|
|
Certification |
CE(IEC 62109-1) |
|
|
EMCCertification Level |
EN61000,C2 |
|
|
Working Temperature Range |
-10℃ ~ 55°C |
|
|
Storage Temperature Range |
-25℃ ~ 60°C |
|
|
Humidity Range |
5% to 95% |
|
|
Size(L*W*D) |
426mm* 322mm*124mm |
|
|
Weight |
10.5kg |
|
