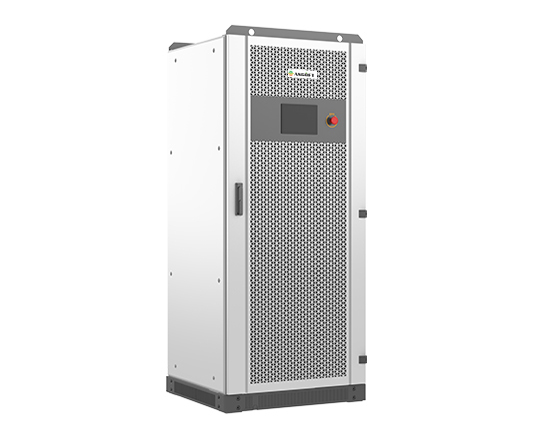

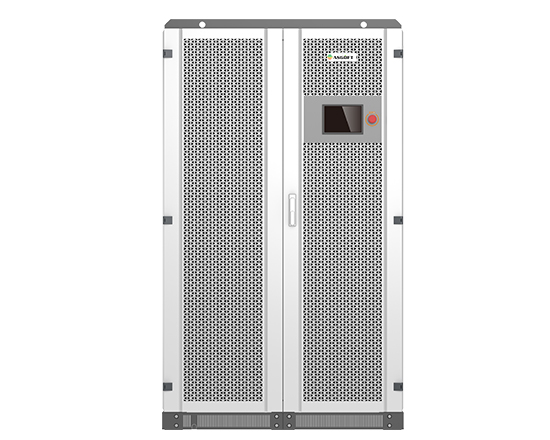

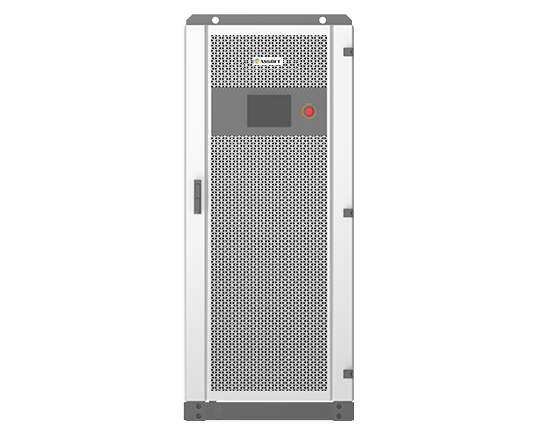

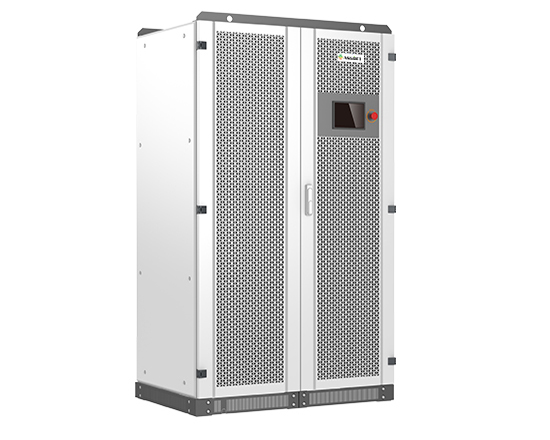

Optical Energy Storage
——
Inverter Is Used To Convert Dc Electric Energy (battery, Storage Battery) Into Current
Product Features
Safe and reliable
Comply to international test certification
Flexible configuration
Support PV, diesel generator, battery, load at the same time access
Strong adaptability, support black start;
Various working modes can be set flexibly
Convenient operation and maintenance
Supports unattended operation , with an HMI digital display panel, which quickly judge the operating status and health of the equipment. Combined with cloud-based EMS, it can realize remote monitoring and management
Integrated design help improve deployment efficiency and reduce installation costs

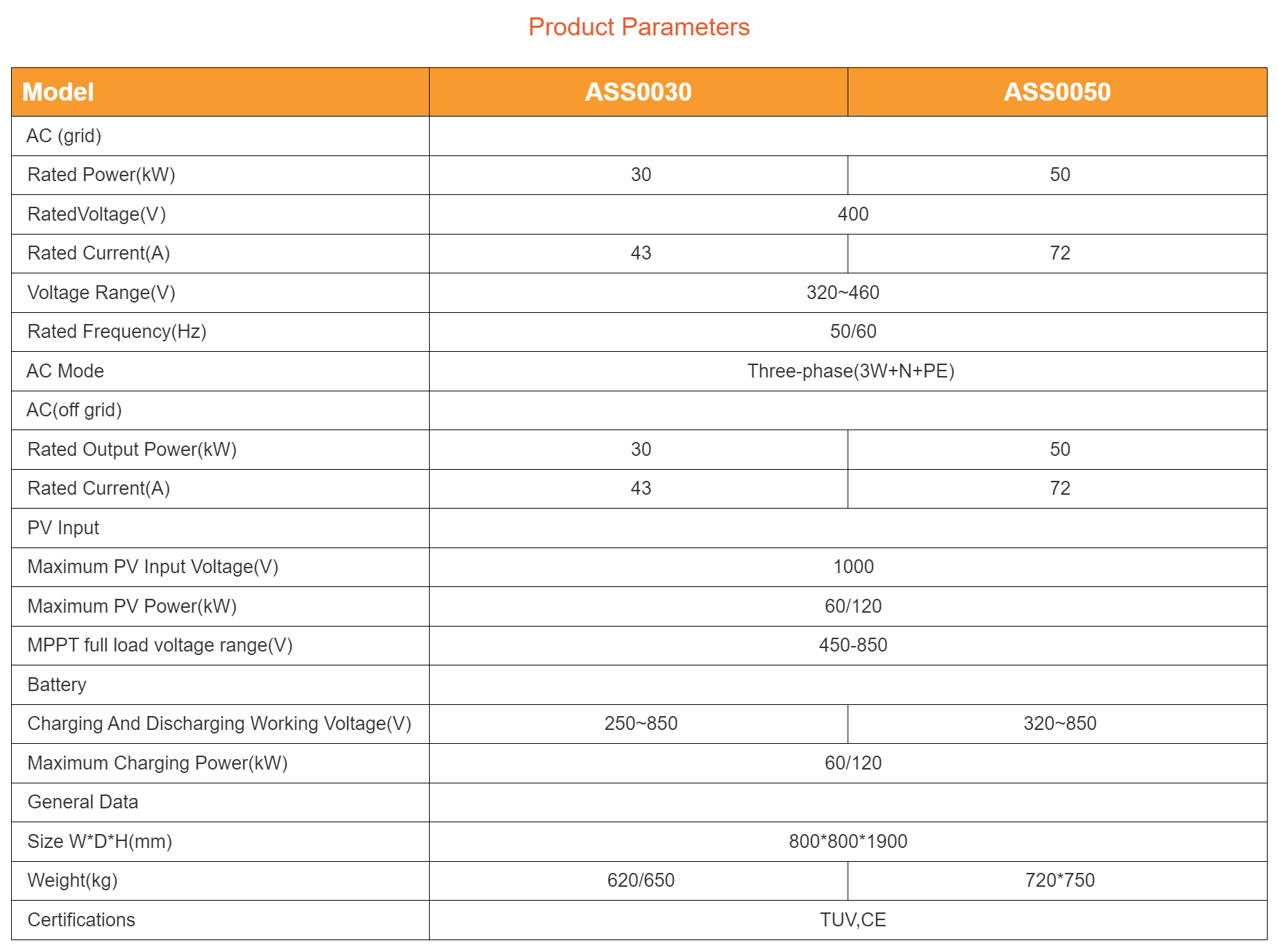

Product Parameters
| Model | ASS0030 | ASS0050 |
| AC (grid) | ||
| Rated Power(kW) | 30 | 50 |
| RatedVoltage(V） | 400 | |
| Rated Current(A) | 43 | 72 |
| Voltage Range(V) | 320~460 | |
| Rated Frequency(Hz) | 50/60 | |
| AC Mode | Three-phase(3W+N+PE) | |
| AC(off grid) | ||
| Rated Output Power(kW) | 30 | 50 |
| Rated Current(A) | 43 | 72 |
| PV Input | ||
| Maximum PV Input Voltage(V) | 1000 | |
| Maximum PV Power(kW) | 60/120 | |
|
MPPT full load voltage range(V) |
450-850 | |
| Battery | ||
| Charging And Discharging Working Voltage(V) | 250~850 |
320~850 |
| Maximum Charging Power(kW) | 60/120 | |
| General Data | ||
| Size W*D*H(mm) | 800*800*1900 | |
| Weight(kg) | 620/650 | 720*750 |
| Certifications | TUV,CE | |
