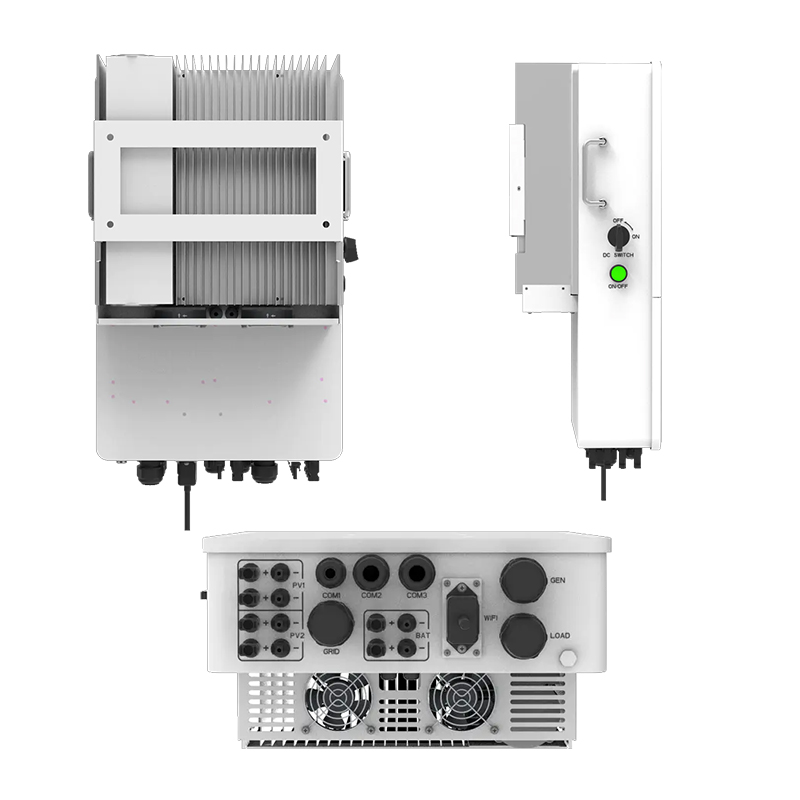

DEYE SUN-10K-SG01HP3-EU-AM2

Introducing the SUN-10K-SG01HP3-EU-AM2 from Deye—a 10KW three-phase hybrid inverter tailored for high voltage battery energy storage systems. This advanced solution seamlessly integrates with energy storage, offering superior efficiency and reliability. Experience cutting-edge technology and seamless integration for a sustainable energy solution with Deye's hybrid inverter.

Interview

Product Detail

Deye 10KW Three Phase Hybrid Inverter for High Voltage Battery Energy Storage System SUN-10K-SG01HP3-EU-AM2

Battery Type
Lithium-ion
Battery Voltage Range(V)
150~800V
Max. Charging Current (A)
37
Max. Discharging Current (A)
37
Number of battery input
1
External Temperature Sensor
2
Charging Curve
3 Stages/ Equalization
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
Max. DC Input Voltage (V)
1000
Start-up Voltage (V)
150V
MPPT Range (V）
200V-850V
Peak Power (off grid)
1.5 times of rated power, 10s
Max. Continuous AC Passthrough (A)
80A
Grid Type
Three Phase
DC Current Injection
<0.5% In
Max. Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
PV Input Lightning Protection
Intergrated
Anti-islanding Protection
Intergrated
PV String Input Reverse Polarity Protection
Intergrated
Insulation Resistor Detection
Intergrated
Residual Current Monitoring Unit
Intergrated
Output Over Current Protection
Intergrated
Output Shorted Protection
Integrated
Surge Protection
Integrated
Output Over Voltage Category
DC Type II/AC Type III
Operating Temperature Range (℃)
-40-60℃, >45℃Derating
Cooling
Smart Cooling
Noise (dB)
≤45 dB
Communication with BMS
RS485; CAN
Weight (kg)
26
Size (mm)
434W×645H×245D
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 Years


Products Description



Previous : DEYE SUN-5K-SG05LP1-EU Next : DEYE SUN-30K-SG01HP3-EU-BM3
DEYE SUN-10K-SG01HP3-EU-AM2
Introducing the SUN-10K-SG01HP3-EU-AM2 from Deye—a 10KW three-phase hybrid inverter tailored for high voltage battery energy storage systems. This advanced solution seamlessly integrates with energy storage, offering superior efficiency and reliability. Experience cutting-edge technology and seamless integration for a sustainable energy solution with Deye's hybrid inverter.
