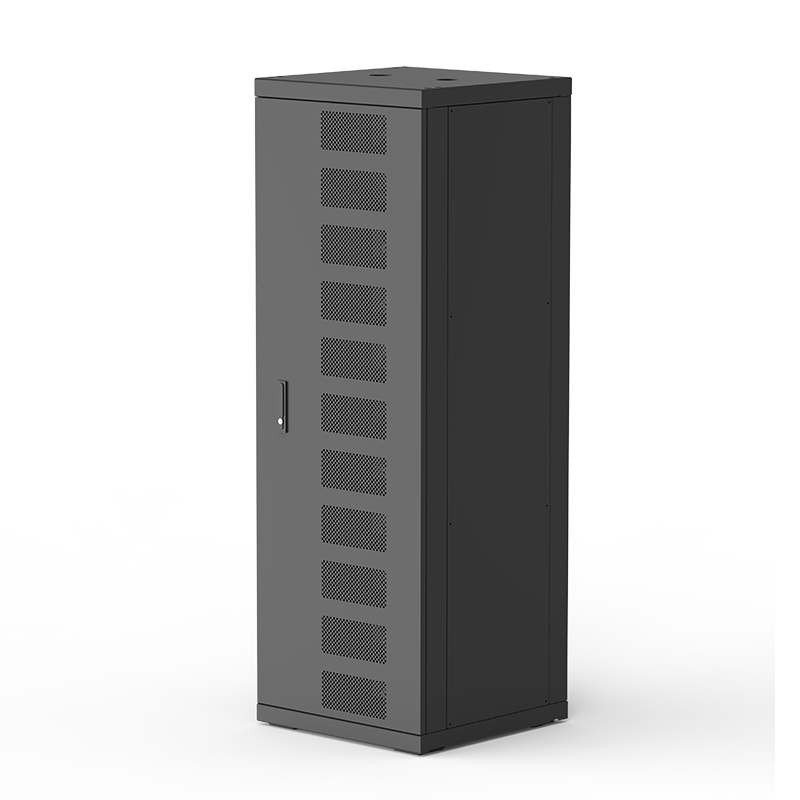

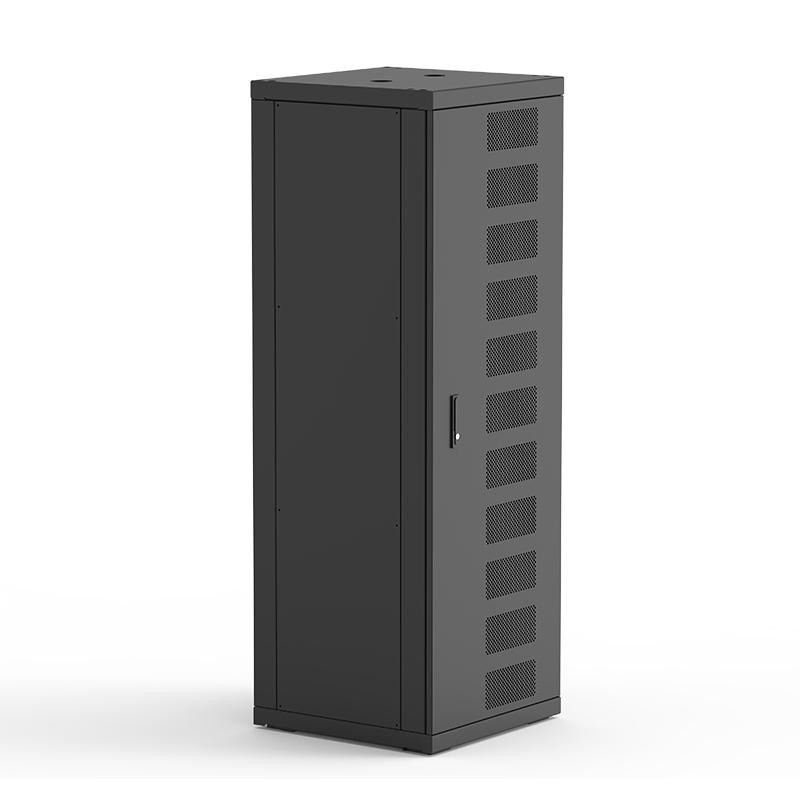

ASS450M-120
——
Product Feature
All in one
Built in 6KWh battery, 3KW inverter and 3KW MPPT
Intelligent
Built in smart Battery Management System
LCD touch screen for easy reviewing the battery information
High quality and reliable
BYD cell, CE/ROHS/UN38.3/MSDS certification
Widely application

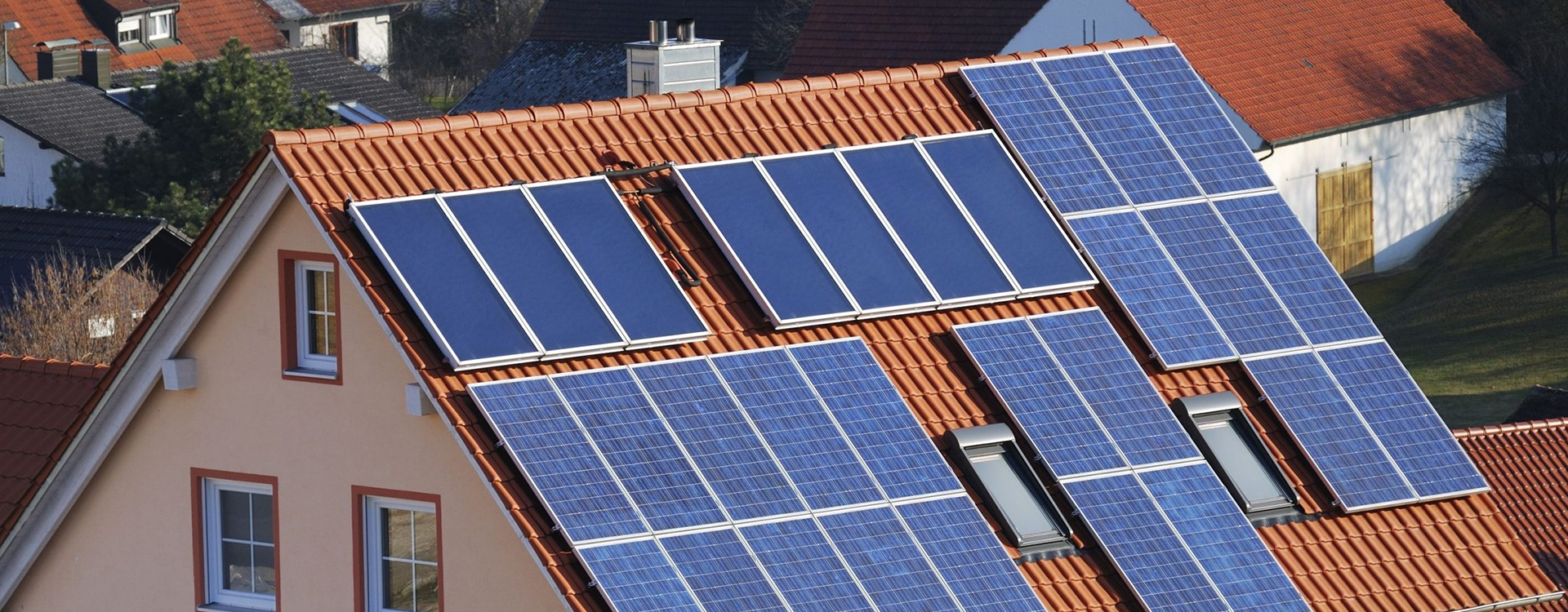

Household energy storage, outdoor portable power station,backup power supply, emergency charge for EV, etc..

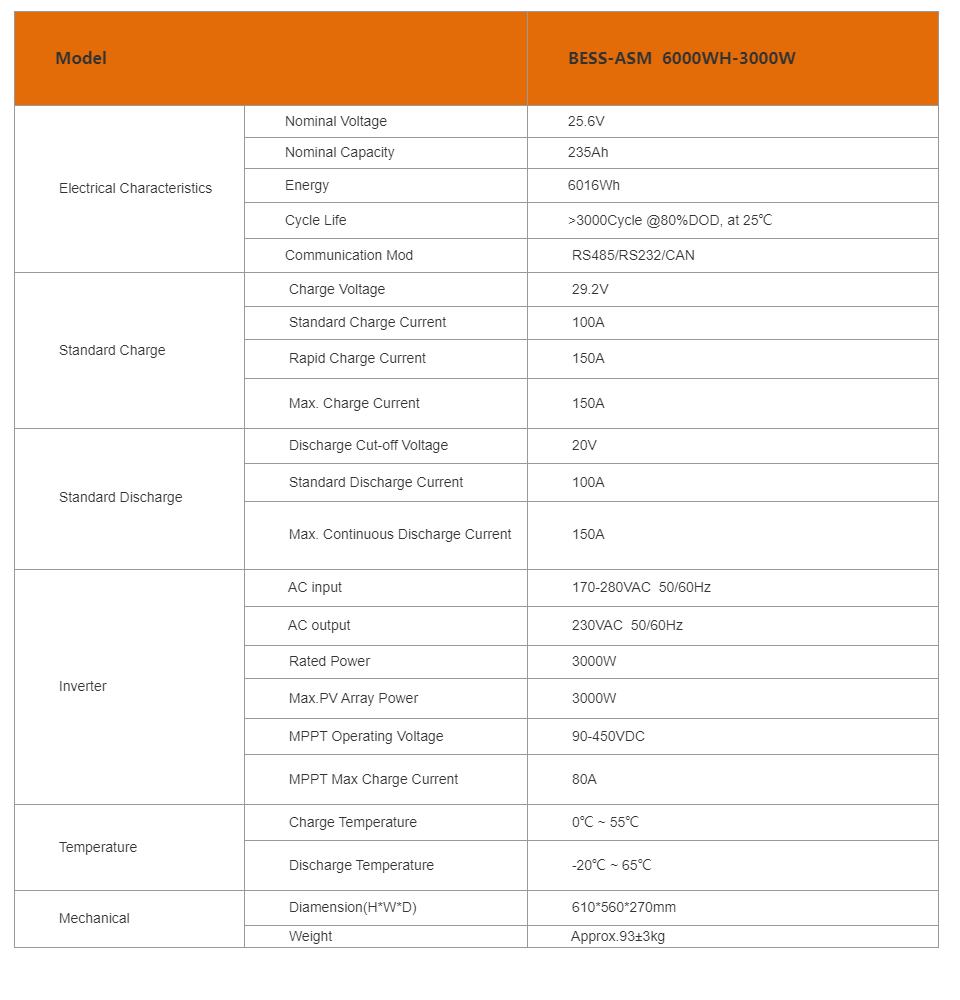

Product Parameter
|
Model |
BESS-ASM 6000WH-3000W |
|
|
Electrical Characteristics |
Nominal Voltage |
25.6V |
|
Nominal Capacity |
235Ah |
|
|
Energy |
6016Wh |
|
|
Cycle Life |
>3000Cycle @80%DOD, at 25℃ |
|
|
Communication Mod |
RS485/RS232/CAN |
|
|
Standard Charge |
Charge Voltage |
29.2V |
|
Standard Charge Current |
100A |
|
|
Rapid Charge Current |
150A |
|
|
Max. Charge Current |
150A |
|
|
Standard Discharge |
Discharge Cut-off Voltage |
20V |
|
Standard Discharge Current |
100A |
|
|
Max. Continuous Discharge Current |
150A |
|
|
Inverter |
AC input |
170-280VAC 50/60Hz |
|
AC output |
230VAC 50/60Hz |
|
|
Rated Power |
3000W |
|
|
Max.PV Array Power |
3000W |
|
|
MPPT Operating Voltage |
90-450VDC |
|
|
MPPT Max Charge Current |
80A |
|
|
Temperature |
Charge Temperature |
0℃ ~ 55℃ |
|
Discharge Temperature |
-20℃ ~ 65℃ |
|
|
Mechanical |
Diamension(H*W*D) |
610*560*270mm |
|
Weight |
Approx.93±3kg |
|
