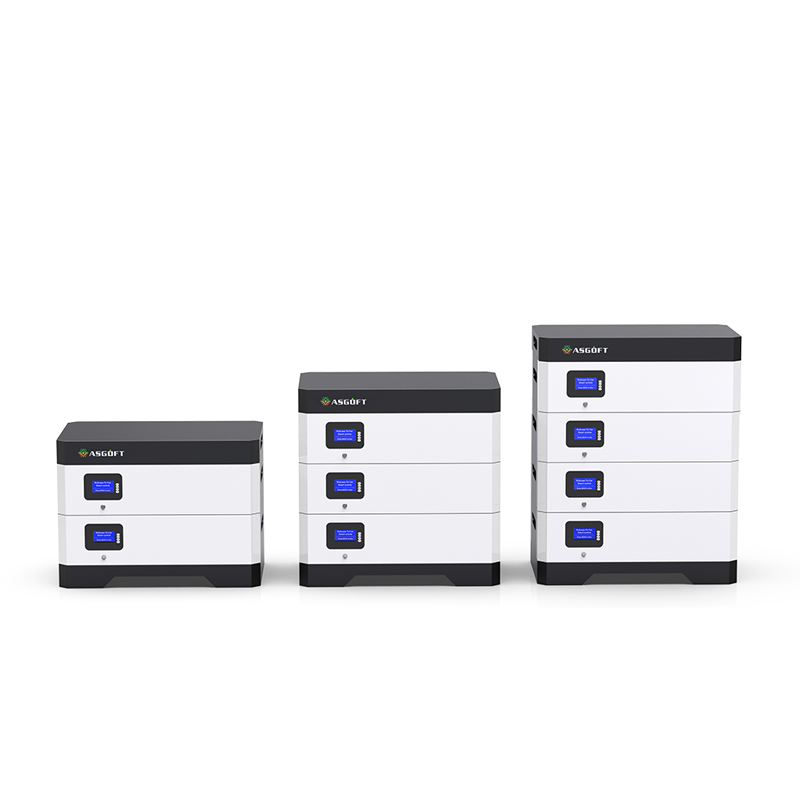

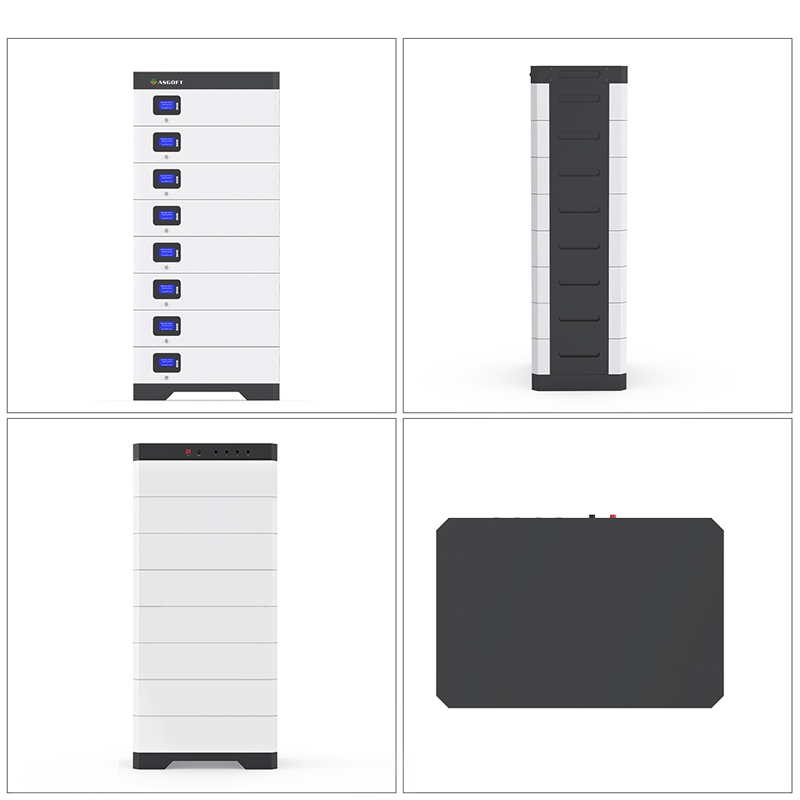

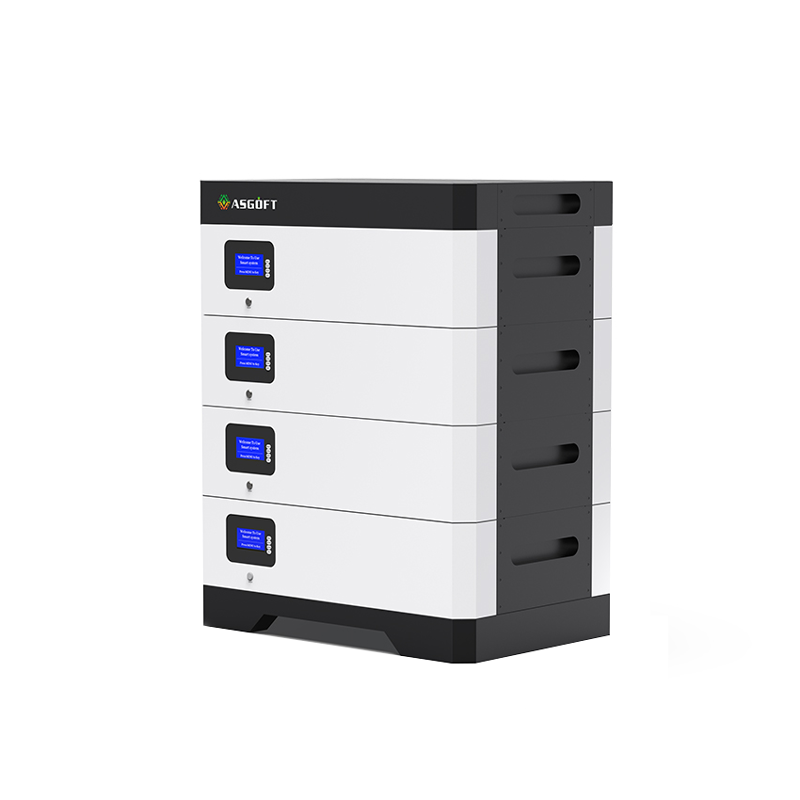

Stacked Battery-ASH-51400
——
Product Features
Built-in independent battery management system
LCD screen available for viewing real-time data
Long cycle life and high safety
Compatible with various brands of inverter communication protocols

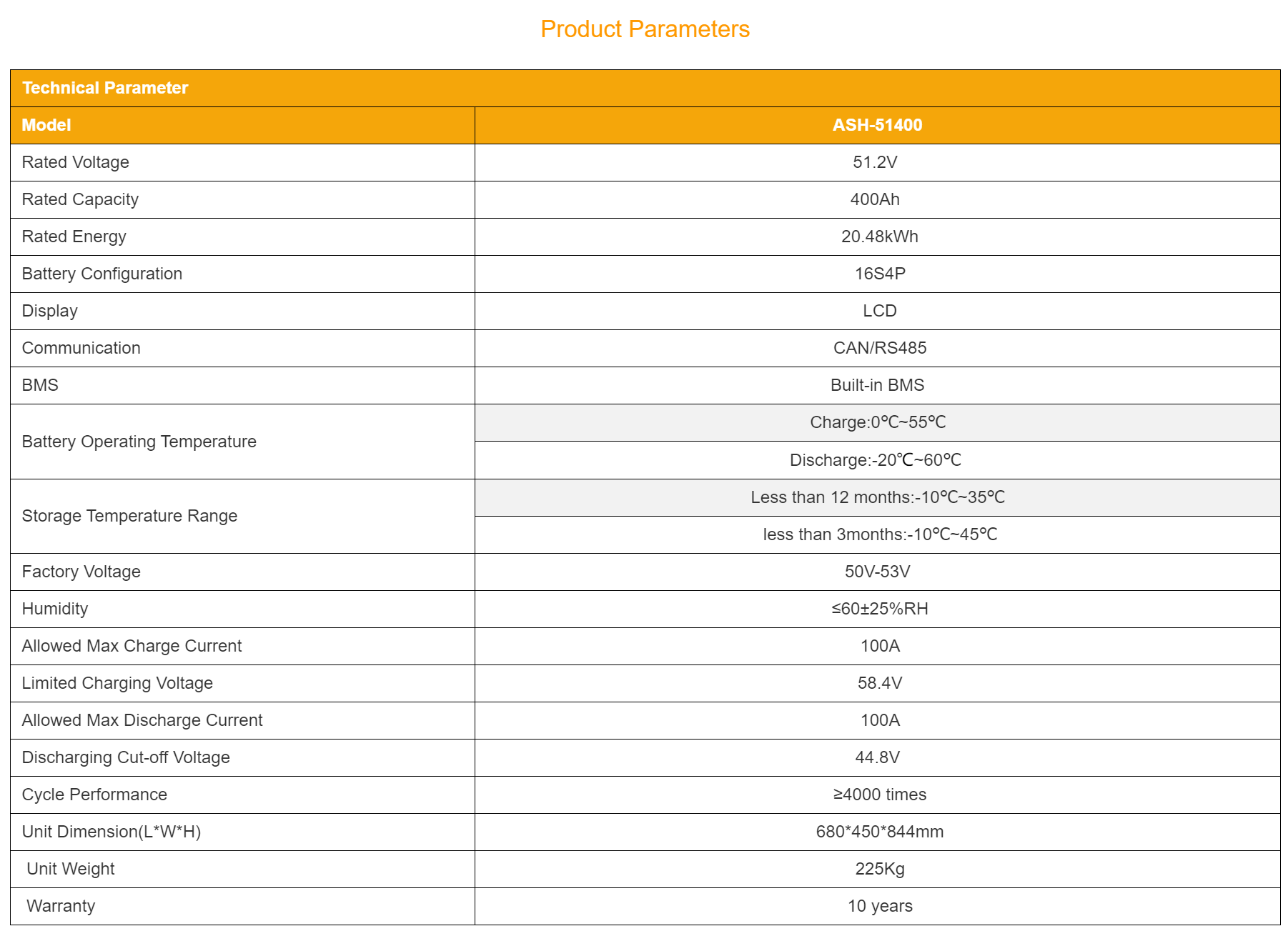

Product Parameters
| Technical Parameter | |
| Model | ASH-51400 |
| Rated Voltage | 51.2V |
| Rated Capacity | 400Ah |
| Rated Energy |
20.48kWh |
| Battery Configuration | 16S4P |
| Display | LCD |
| Communication | CAN/RS485 |
| BMS | Built-in BMS |
| Battery Operating Temperature | Charge:0℃~55℃ |
| Discharge:-20℃~60℃ | |
| Storage Temperature Range | Less than 12 months:-10℃~35℃ |
| less than 3months:-10℃~45℃ | |
| Factory Voltage | 50V-53V |
| Humidity | ≤60±25%RH |
| Allowed Max Charge Current | 100A |
| Limited Charging Voltage | 58.4V |
| Allowed Max Discharge Current | 100A |
| Discharging Cut-off Voltage | 44.8V |
| Cycle Performance | ≥4000 times |
| Unit Dimension(L*W*H) | 680*450*844mm |
| Unit Weight | 225Kg |
| Warranty | 10 years |
