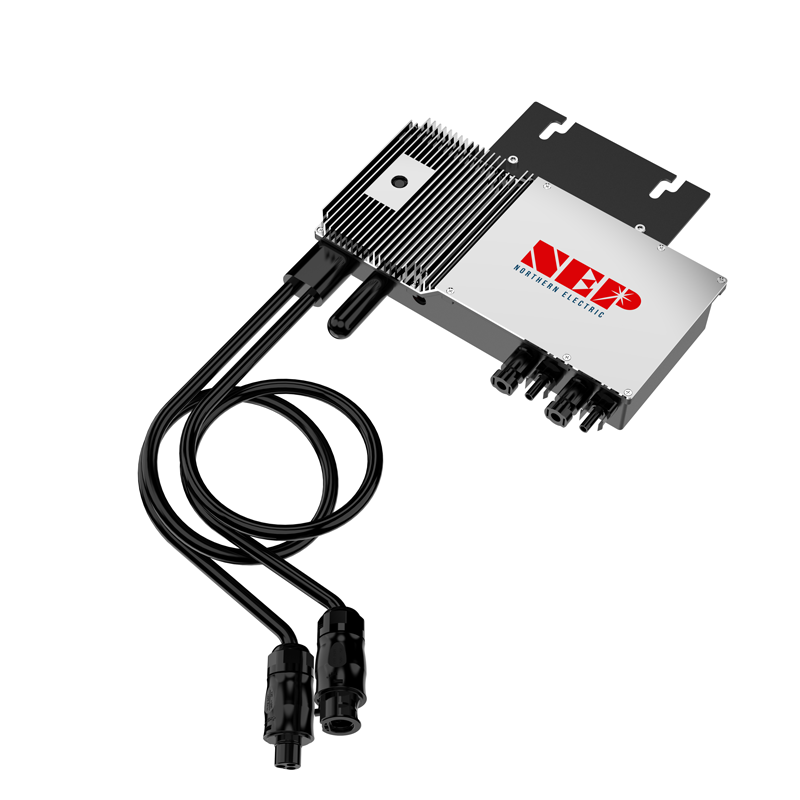

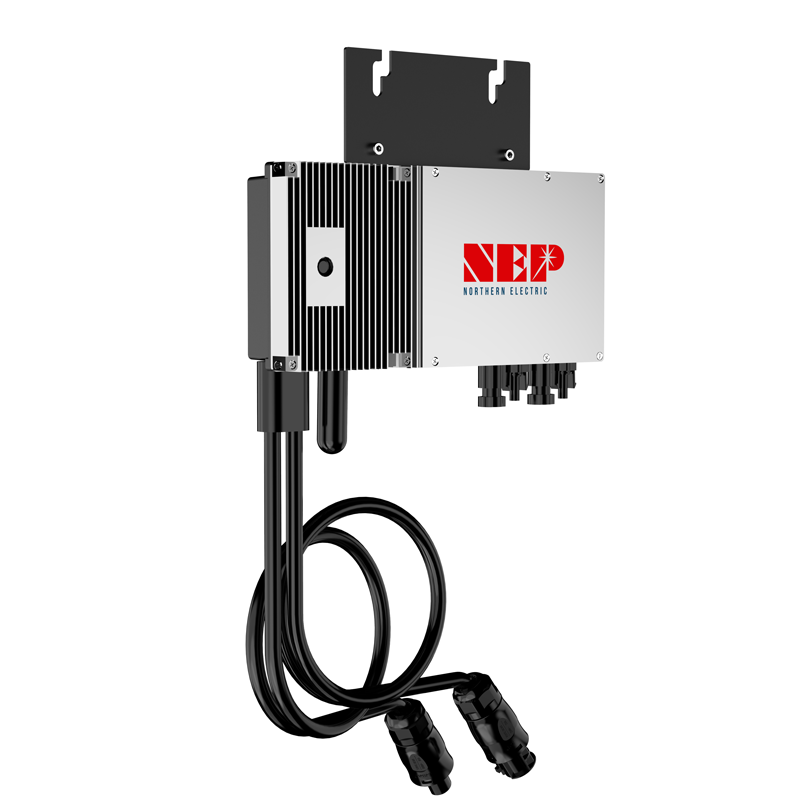

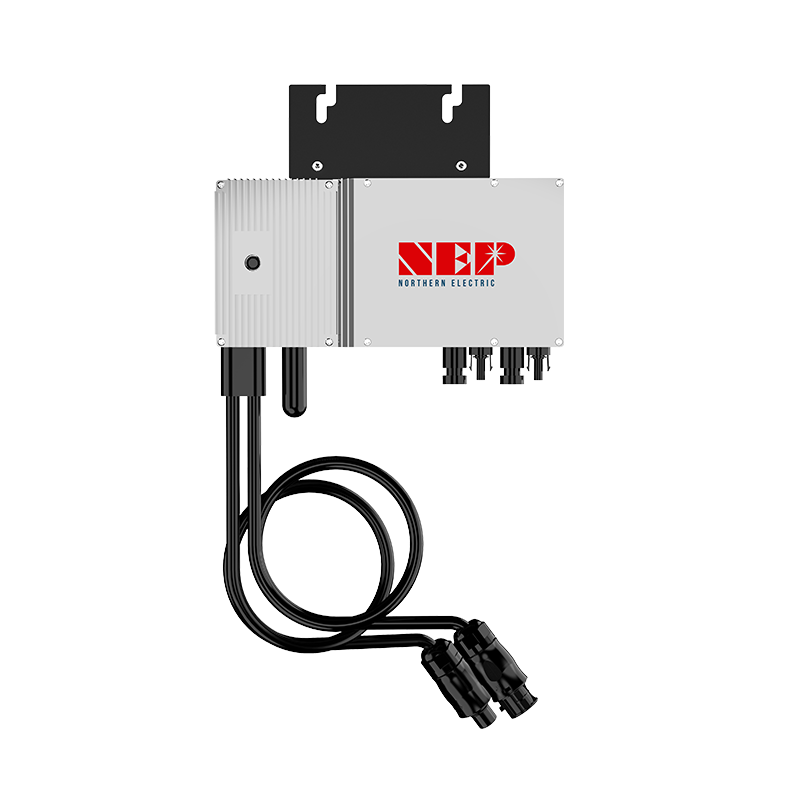

BDM-600X
——
BDM-600X
——
Product Feature
Low cost $/watt microinverter
High continuous output power up to 580Wac, recommended for dual max 450W solar panel
Integrated grounding for easy installation
Integrated monitoring and power line communication with BDG256 gateway

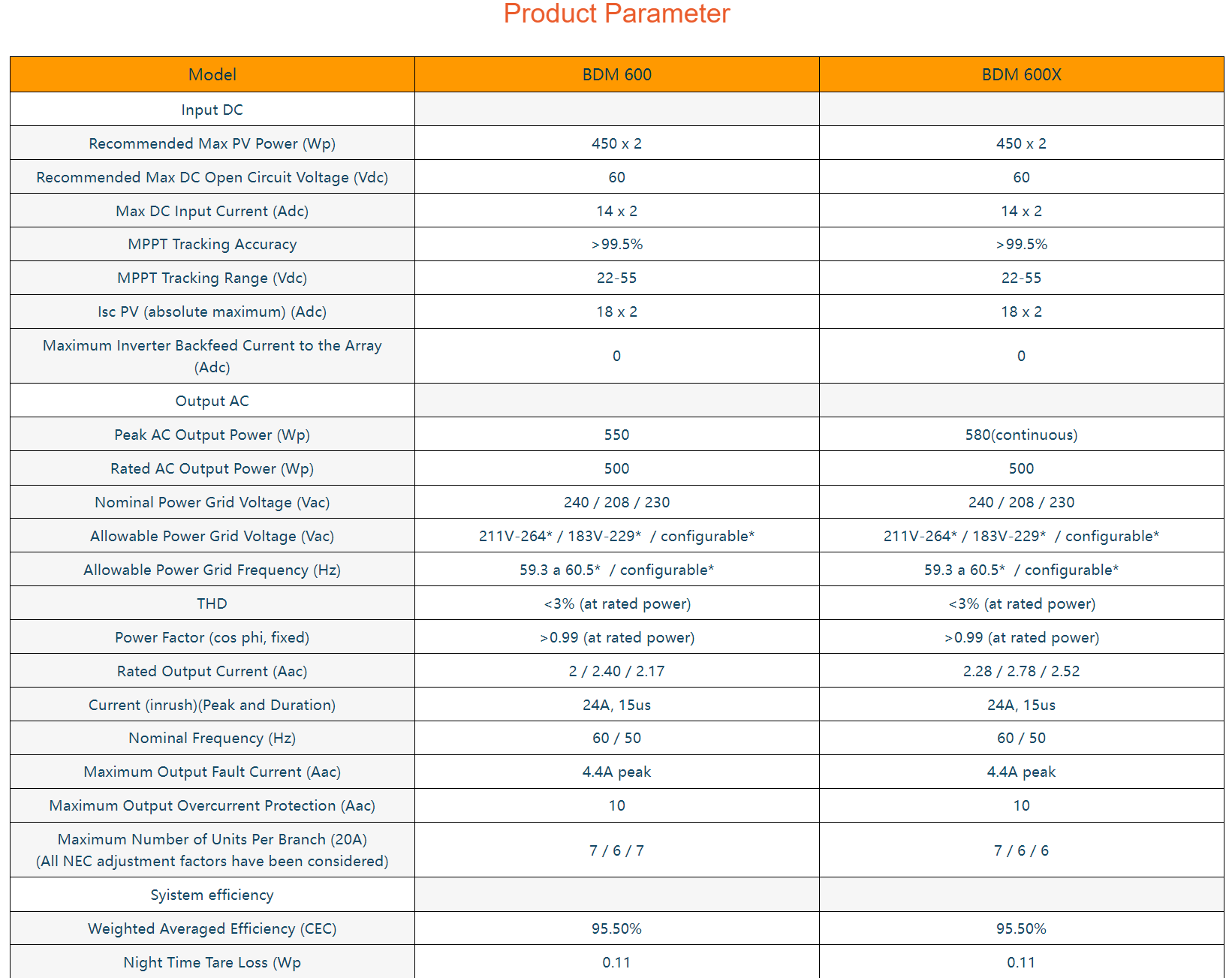

Product Parameter
| Model | BDM 600 | BDM 600X |
|---|---|---|
| Input DC | ||
| Recommended Max PV Power (Wp) | 450 x 2 | 450 x 2 |
| Recommended Max DC Open Circuit Voltage (Vdc) | 60 | 60 |
| Max DC Input Current (Adc) | 14 x 2 | 14 x 2 |
| MPPT Tracking Accuracy | >99.5% | >99.5% |
| MPPT Tracking Range (Vdc) | 22-55 | 22-55 |
| Isc PV (absolute maximum) (Adc) | 18 x 2 | 18 x 2 |
| Maximum Inverter Backfeed Current to the Array (Adc) |
0 | 0 |
| Output AC | ||
| Peak AC Output Power (Wp) | 550 | 580(continuous) |
| Rated AC Output Power (Wp) | 500 | 500 |
| Nominal Power Grid Voltage (Vac) | 240 / 208 / 230 | 240 / 208 / 230 |
| Allowable Power Grid Voltage (Vac) | 211V-264* / 183V-229* / configurable* | 211V-264* / 183V-229* / configurable* |
| Allowable Power Grid Frequency (Hz) | 59.3 a 60.5* / configurable* | 59.3 a 60.5* / configurable* |
| THD | <3% (at rated power) | <3% (at rated power) |
| Power Factor (cos phi, fixed) | >0.99 (at rated power) | >0.99 (at rated power) |
| Rated Output Current (Aac) | 2 / 2.40 / 2.17 | 2.28 / 2.78 / 2.52 |
| Current (inrush)(Peak and Duration) | 24A, 15us | 24A, 15us |
| Nominal Frequency (Hz) | 60 / 50 | 60 / 50 |
| Maximum Output Fault Current (Aac) | 4.4A peak | 4.4A peak |
| Maximum Output Overcurrent Protection (Aac) | 10 | 10 |
| Maximum Number of Units Per Branch (20A) (All NEC adjustment factors have been considered) |
7 / 6 / 7 | 7 / 6 / 6 |
| Syistem efficiency | ||
| Weighted Averaged Efficiency (CEC) | 95.50% | 95.50% |
| Night Time Tare Loss (Wp | 0.11 | 0.11 |
| Protection functions | ||
| Over/Under Voltage Protection | Yes | Yes |
| Over/Under Frequency Protection | Yes | Yes |
| Anti-Islanding Protection | Yes | Yes |
| Over Current Protection | Yes | Yes |
| Reverse DC Polarity Protection | Yes | Yes |
| Overload Protection | Yes | Yes |
| Protection Degree | NEMA-6 / IP-66 / IP-67 | NEMA-6 / IP-66 / IP-67 |
| Ambient Temperature | -40°F to +149°F (-40°C to +65°C) | -40°F to +149°F (-40°C to +65°C) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) | -40°F to +185°F (-40°C to +85°C) |
| Display | LED LIGHT | LED LIGHT |
| Comunications | Power Line | Power Line |
| Dimension (W-H-D) | 10.91” * 5.20” * 1.97” | 10.91” * 5.20” * 1.97” |
| Weight | 6.4 Ibs | 6.4 Ibs |
| Environment Category | Indoor and outdoor | Indoor and outdoor |
| Wet Location | Suitable | Suitable |
| Pollution Degree | PD 3 | PD 3 |
| Overvoltage Category | II(PV), III (AC MAINS) | II(PV), III (AC MAINS) |
| Product Safety Compliance |
UL 1741 IEC/EN 62109-1 |
UL 1741 IEC/EN 62109-1 |
| Grid Code Compliance* (Refer to the label for the detailed grid code comliance) |
IEEE 1547 VDE-AR-N 4105* |
IEEE 1547 VDE-AR-N 4105* |
