ASS540P-144
—
ASS540P-144
—
Product Parameter
PERC 182 cells
Better capability of current collection, larger area of power generation, nice appearance, more suitable for installation on the roof
High output power
Reaches highest conversion of efficiency to 20.9%
Low light performance
Using excellent glass and texture surface making of solar cell, outstanding performance can be obtained in low light condition
Adaptability of harsh environment
Corrosion tests have certified in half salt fog and high ammonia environment

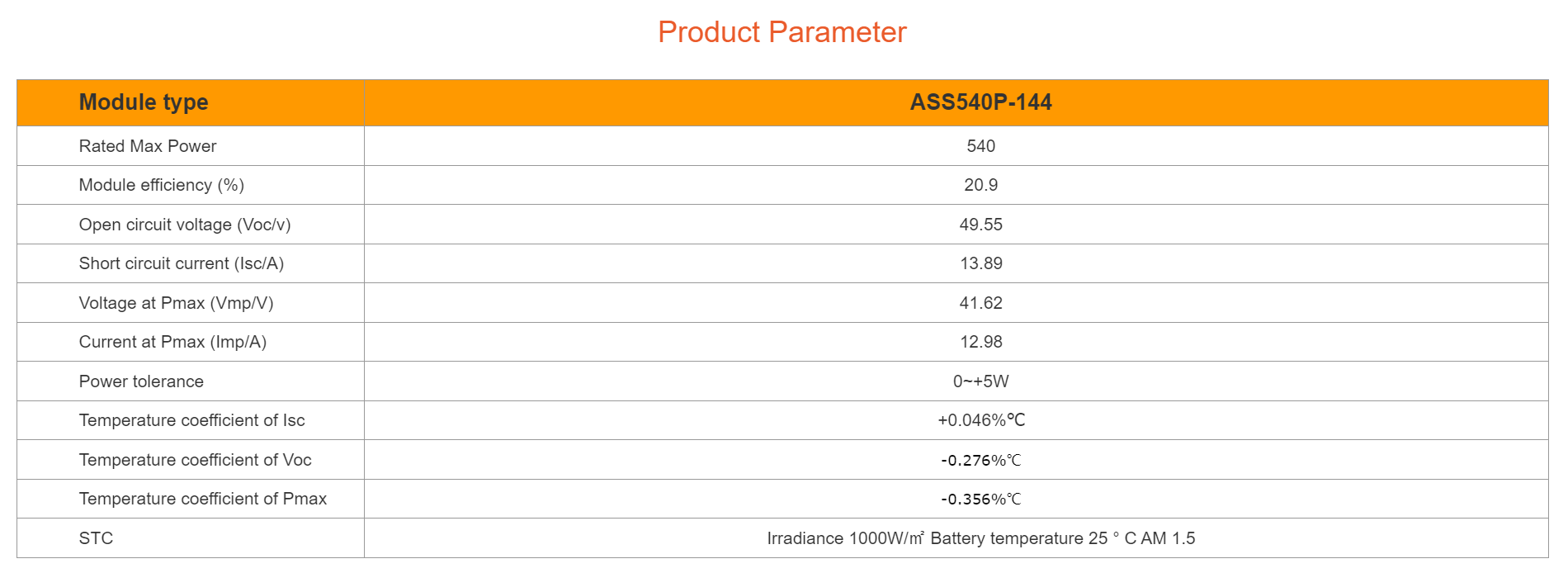

Product Parameter
|
Module type |
ASS540P-144 |
|
Rated Max Power |
540 |
|
Module efficiency (%) |
20.9 |
|
Open circuit voltage (Voc/v) |
49.55 |
|
Short circuit current (Isc/A) |
13.89 |
|
Voltage at Pmax (Vmp/V) |
41.62 |
|
Current at Pmax (Imp/A) |
12.98 |
|
Power tolerance |
0~+5W |
|
Temperature coefficient of Isc |
+0.046%℃ |
|
Temperature coefficient of Voc |
-0.276%℃ |
|
Temperature coefficient of Pmax |
-0.356%℃ |
|
STC |
Irradiance 1000W/㎡ Battery temperature 25 ° C AM 1.5 |
