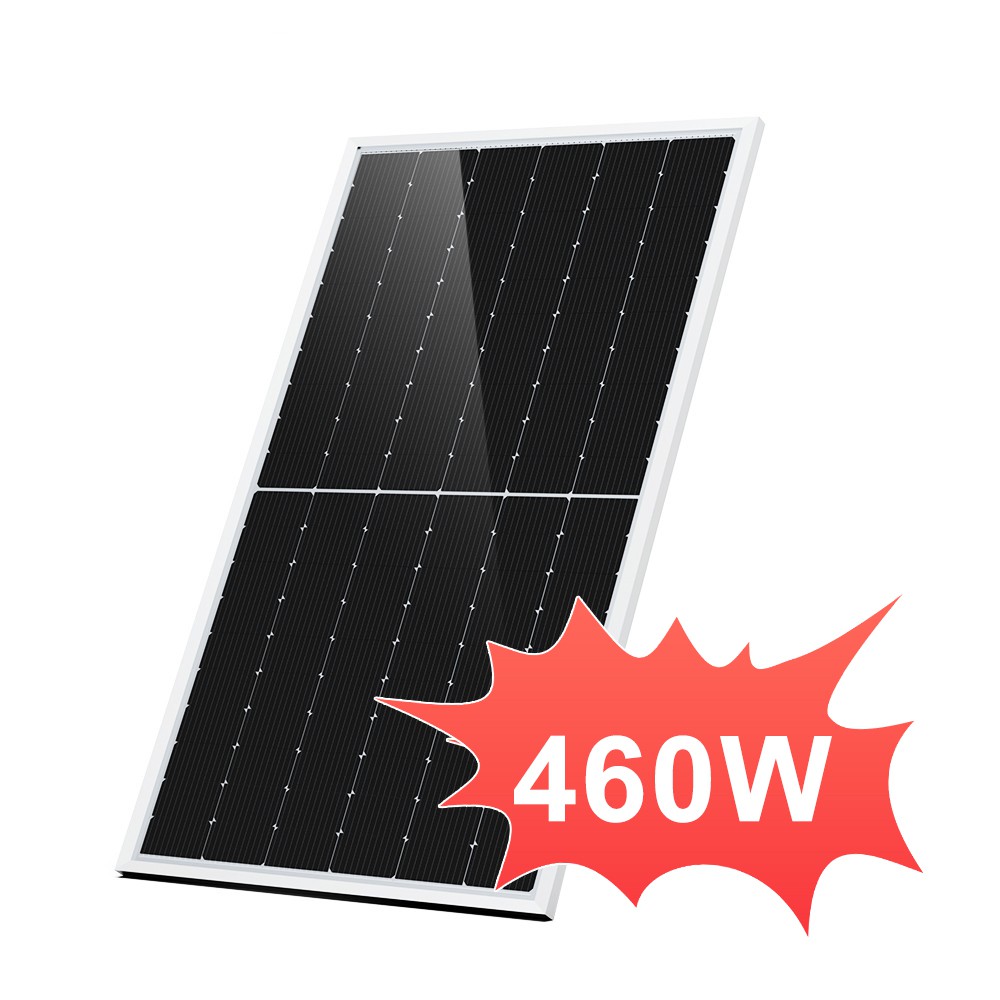

ASS450M-120
——
Product Feature
Higher Durability
The multi-busbar design can decrease the risk of the cell micro-cracks and finger broken.
High power density
High conversion efficiency and more power output per square meter,by lower series resistance and improved light harvesting.
PID Resistant
Tested in accordance to the standard IEC62804, the PV modules have demonstrated resistance against PID, which translates to security for customer’s investment.
Bigger cells with better performance
A slight increase of the cell size,boosts the performance of the newest modules by six percent on average.

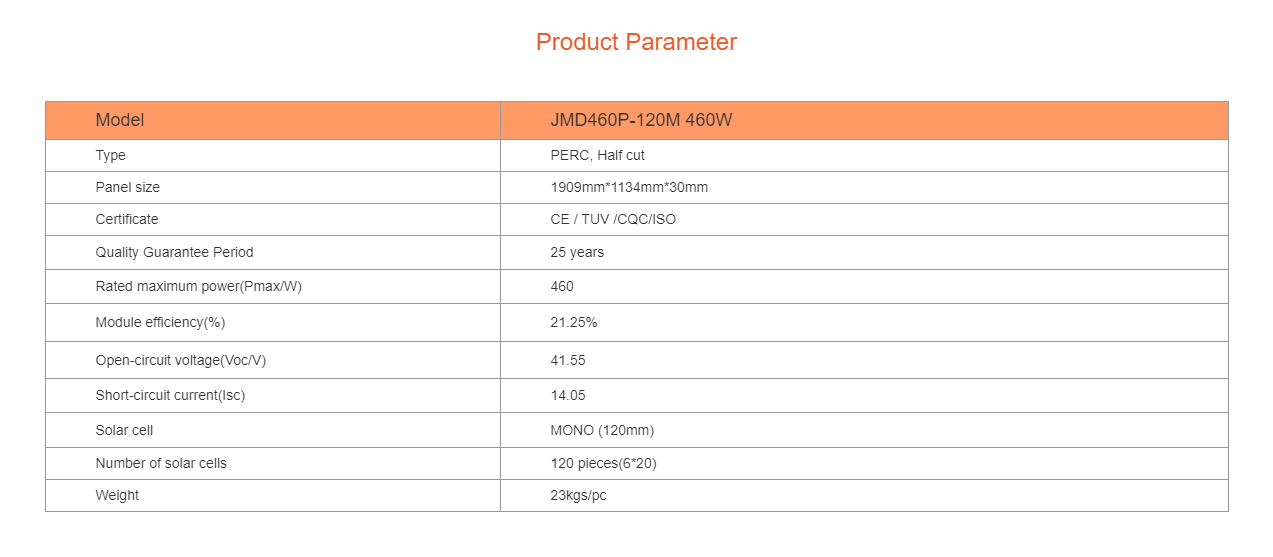

Product Parameter
|
Model |
JMD460P-120M 460W |
|
Type |
PERC, Half cut |
|
Panel size |

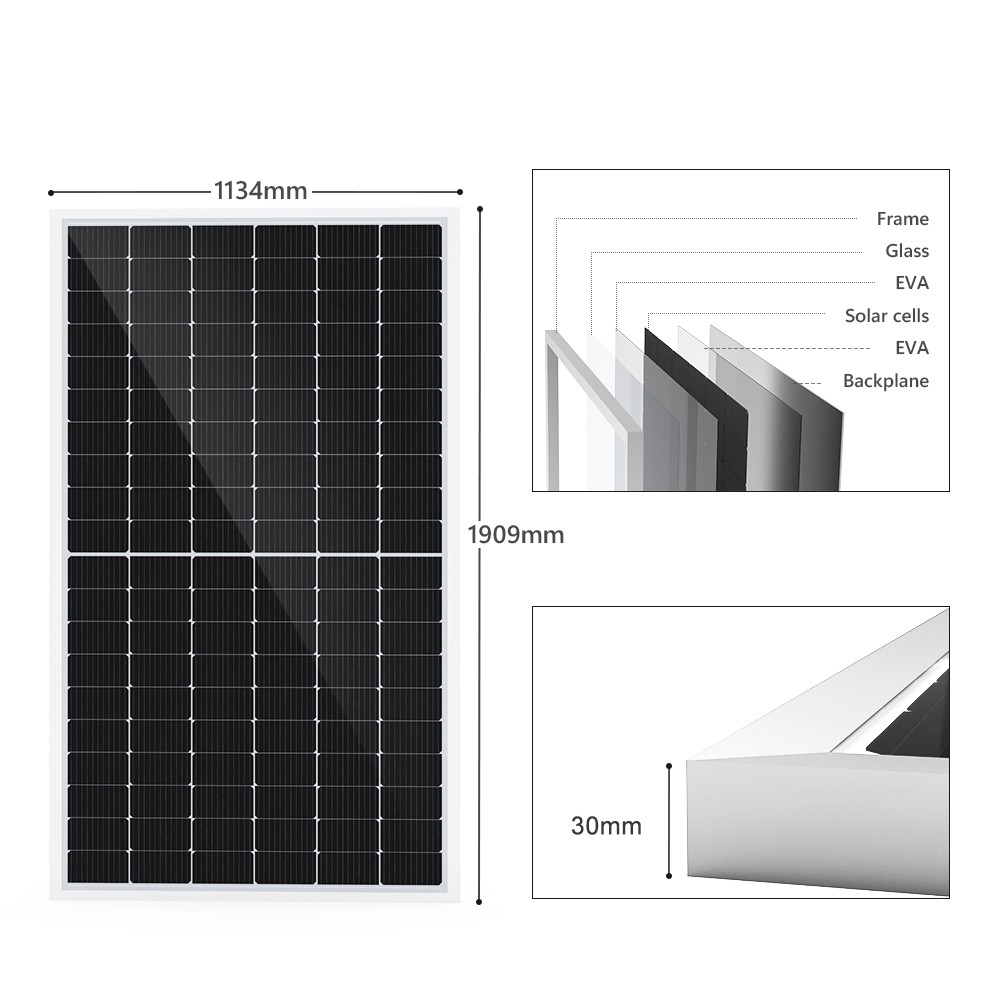

1909mm*1134mm*30mm |
|
Certificate |
CE / TUV /CQC/ISO |
|
Quality Guarantee Period |
25 years |
|
Rated maximum power(Pmax/W) |
460 |
|
Module efficiency(%) |
21.25% |
|
Open-circuit voltage(Voc/V) |
41.55 |
|
Short-circuit current(Isc) |
14.05 |
|
Solar cell |
MONO (120mm) |
|
Number of solar cells |
120 pieces(6*20) |
|
Weight |
23kgs/pc |
