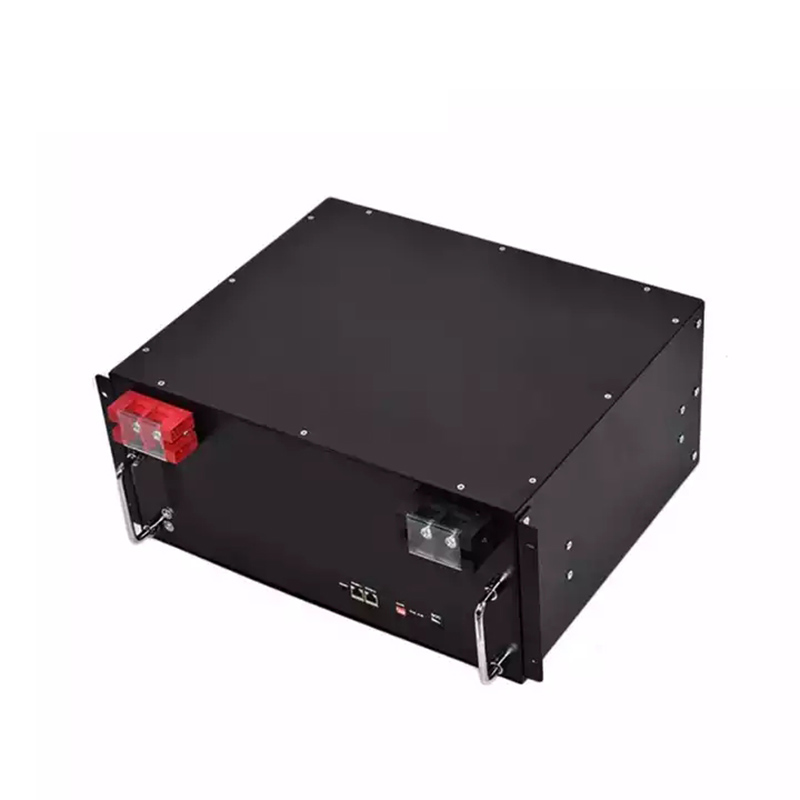

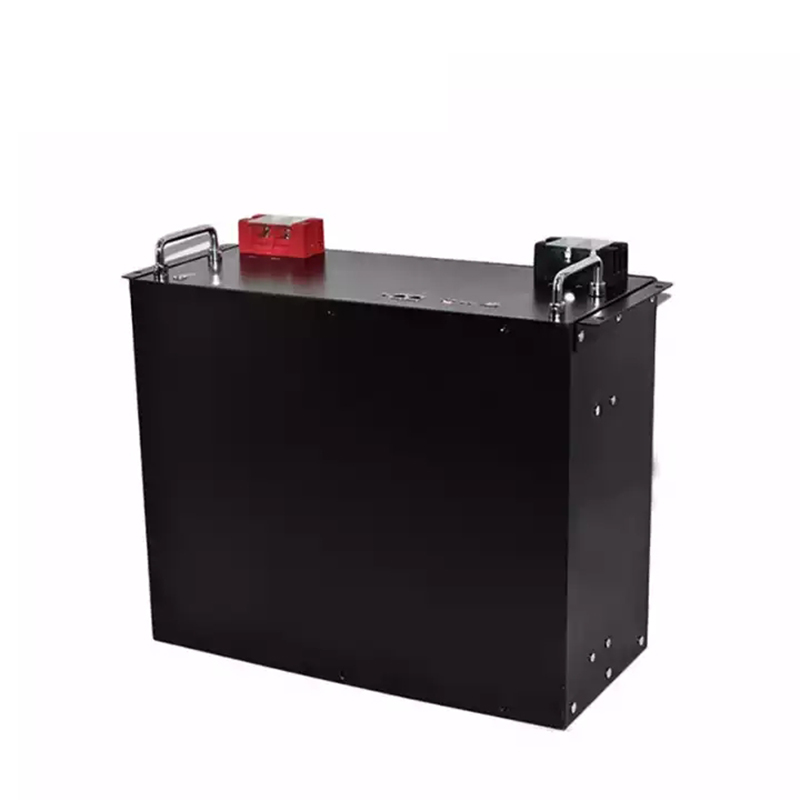

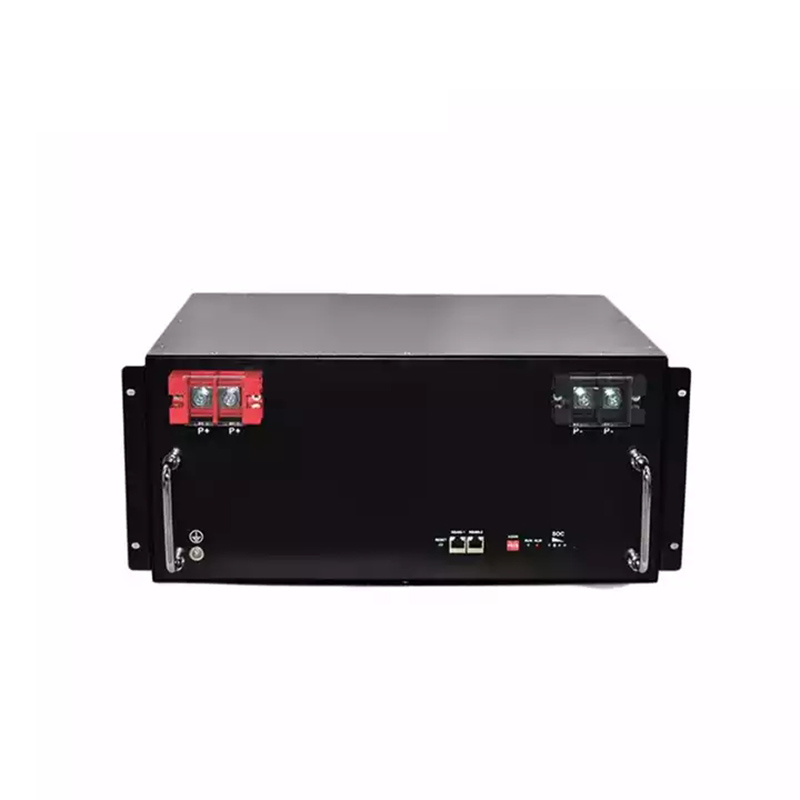

48v Rack Type Energy Storage 48v 200ah
——
Simple Installation, Convenient Expansion And Investment Saving
48v Rack Type Energy Storage 48v 200ah
——
Simple Installation, Convenient Expansion And Investment Saving
Product Features
Easy to install and use
Modular design for easy capacity expansion、
High energy density
High charge-discharge conversion efficiency
Multiple protection functions from BMS

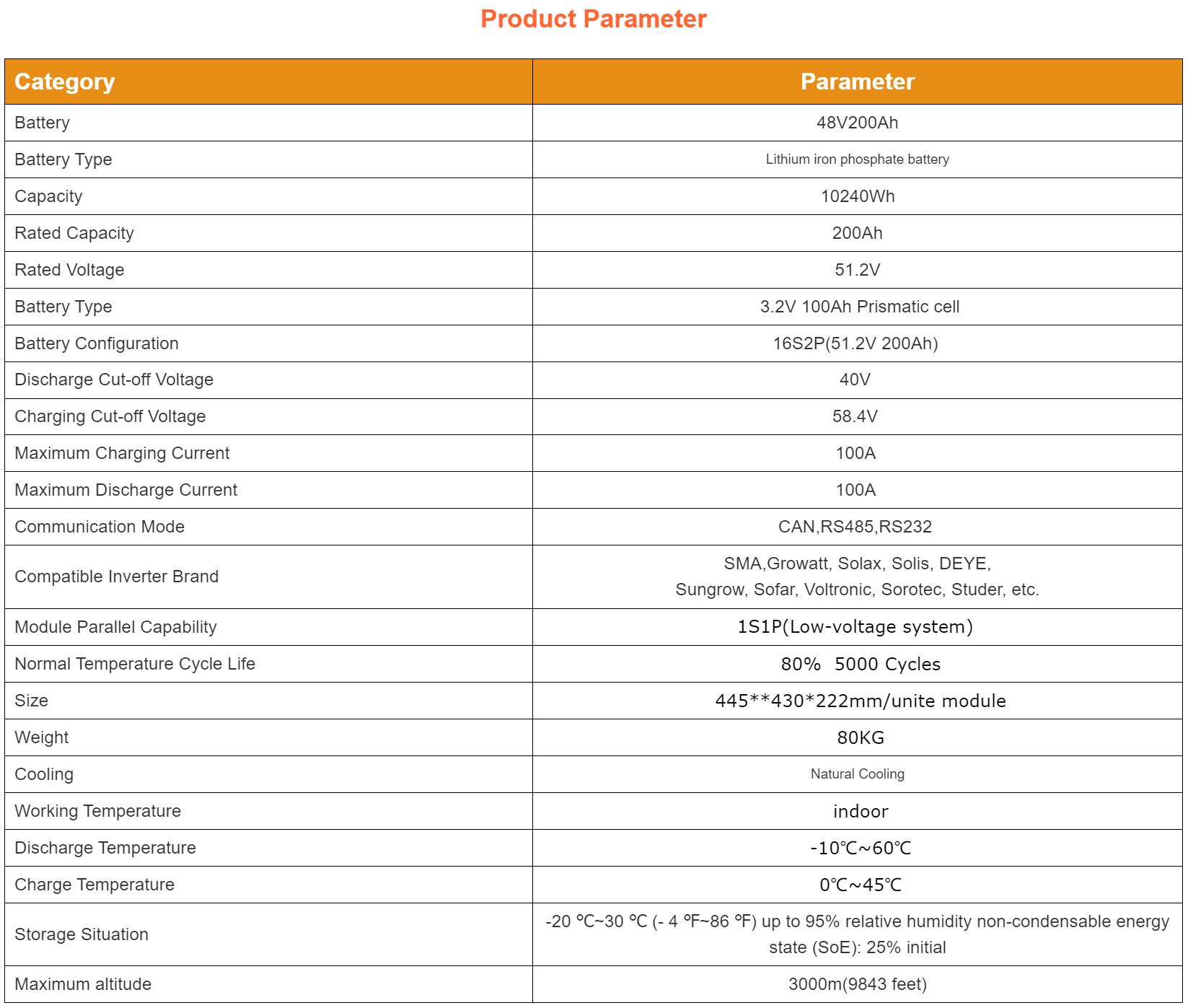

Product Parameter
| Category | Parameter |
| Battery | 48V200Ah |
| Battery Type | Lithium iron phosphate battery |
| Capacity | 10240Wh |
| Rated Capacity | 200Ah |
| Rated Voltage | 51.2V |
| Battery Type | 3.2V 100Ah Prismatic cell |
| Battery Configuration | 16S2P(51.2V 200Ah) |
| Discharge Cut-off Voltage | 40V |
| Charging Cut-off Voltage | 58.4V |
| Maximum Charging Current | 100A |
| Maximum Discharge Current | 100A |
| Communication Mode | CAN,RS485,RS232 |
| Compatible Inverter Brand | SMA,Growatt, Solax, Solis, DEYE, Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. |
| Module Parallel Capability | 1S1P(Low-voltage system) |
| Normal Temperature Cycle Life | 80% 5000 Cycles |
| Size | 445**430*222mm/unite module |
| Weight | 80KG |
| Cooling | Natural Cooling |
| Working Temperature | indoor |
| Discharge Temperature | -10℃~60℃ |
| Charge Temperature | 0℃~45℃ |
| Storage Situation | -20 ℃~30 ℃ (- 4 ℉~86 ℉) up to 95% relative humidity non-condensable energy state (SoE): 25% initial |
| Maximum altitude | 3000m(9843 feet) |
