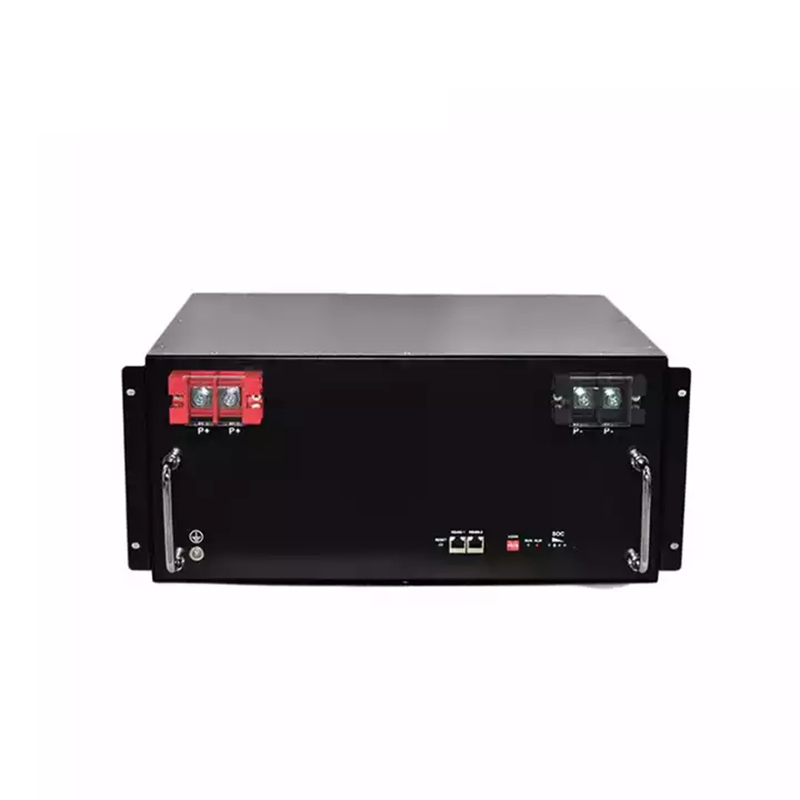

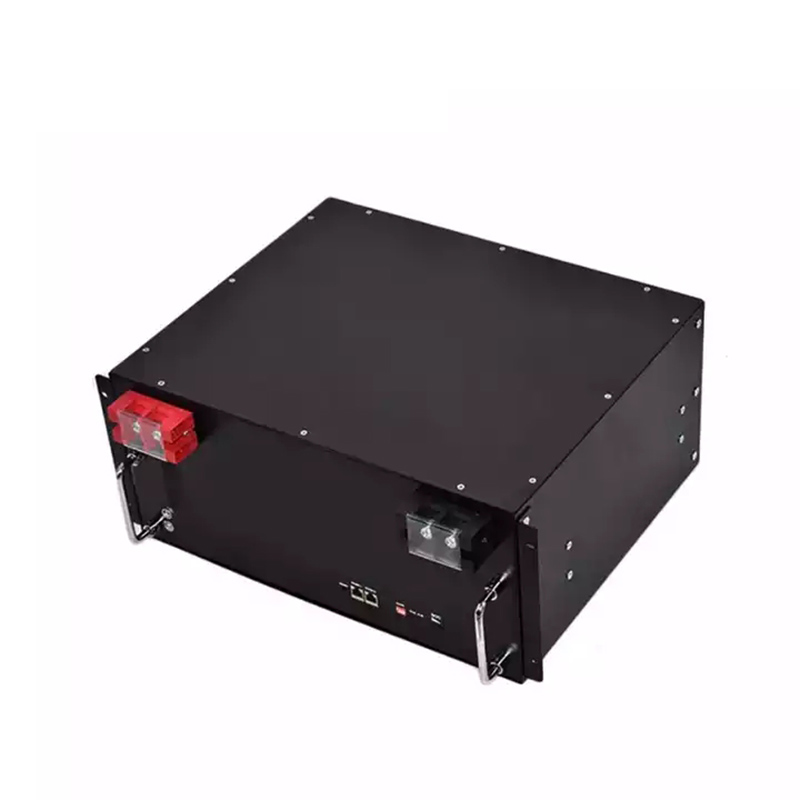

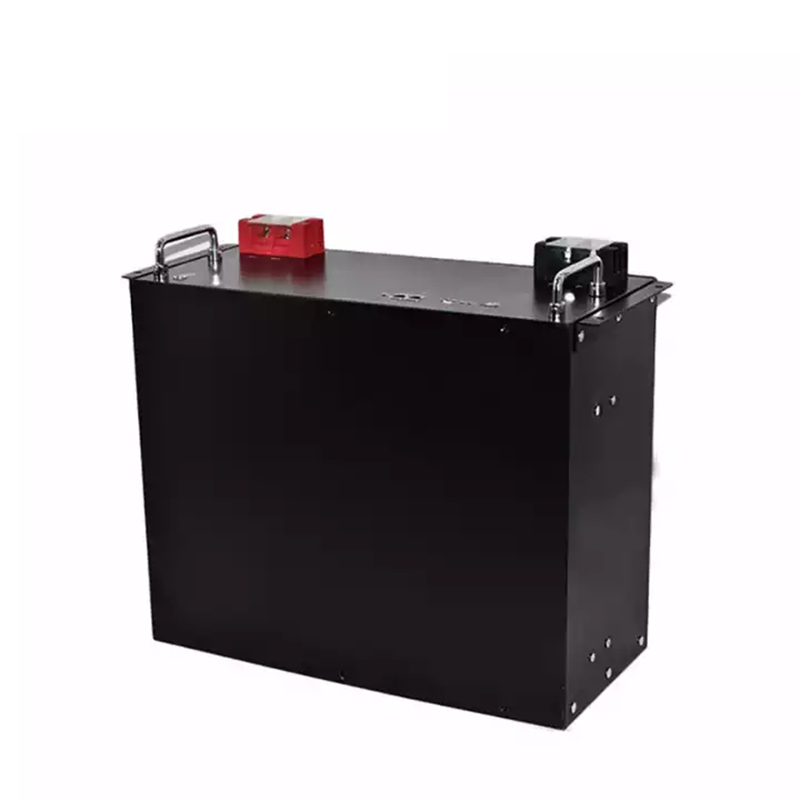

48v Rack Type Energy Storage 48v 100ah
——
Simple Installation, Convenient Expansion And Investment Saving
48v Rack Type Energy Storage 48v 100ah
——
Simple Installation, Convenient Expansion And Investment Saving
Product Features
Easy to install and use
Modular design for easy capacity expansion、
High energy density
High charge-discharge conversion efficiency
Multiple protection functions from BMS

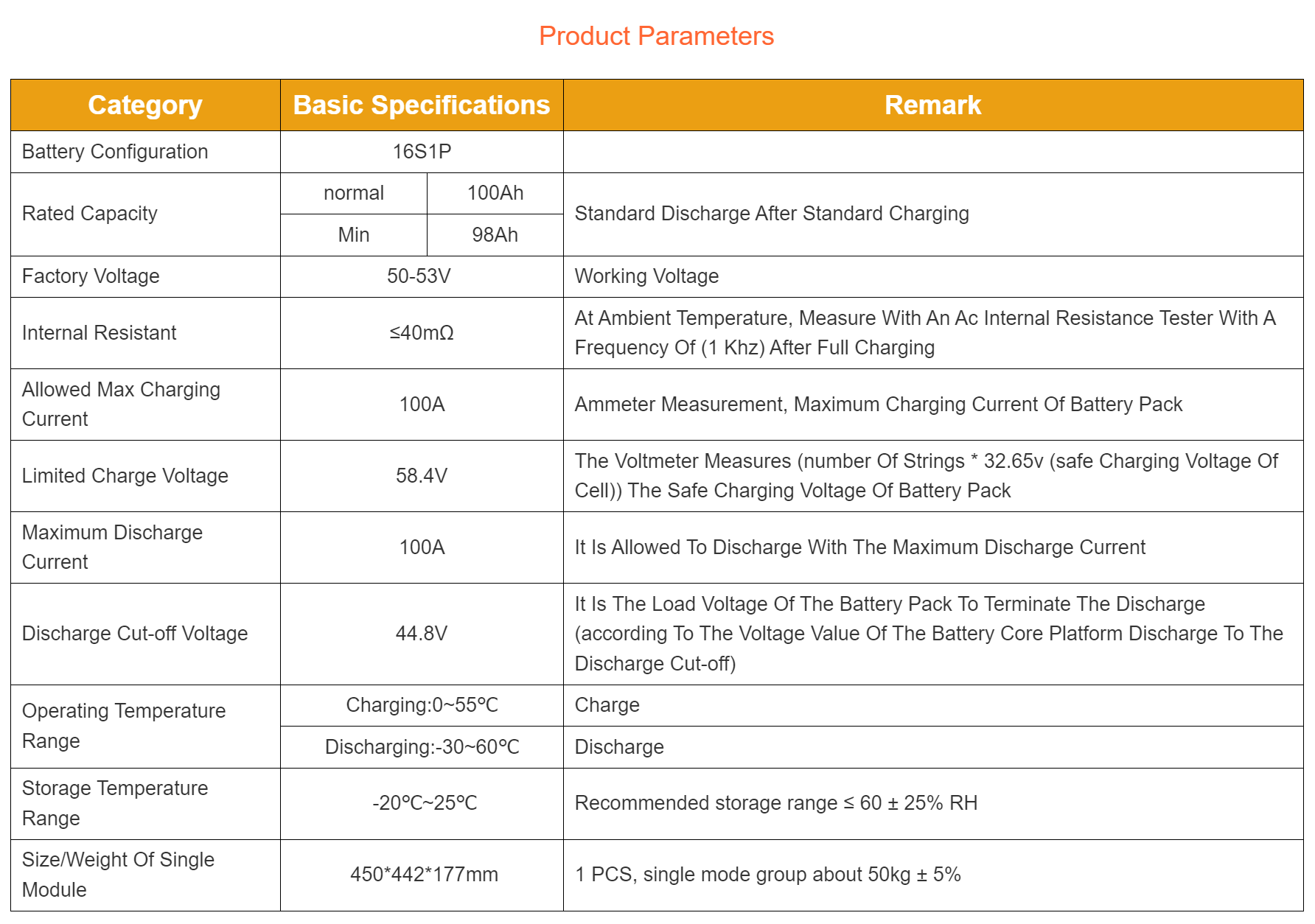

Product Parameters
| Category | Basic Specifications | Remark | |
| Battery Configuration | 16S1P | ||
| Rated Capacity | normal | 100Ah | Standard Discharge After Standard Charging |
| Min | 98Ah | ||
| Factory Voltage | 50-53V | Working Voltage | |
| Internal Resistant | ≤40mΩ | At Ambient Temperature, Measure With An Ac Internal Resistance Tester With A Frequency Of (1 Khz) After Full Charging | |
| Allowed Max Charging Current | 100A | Ammeter Measurement, Maximum Charging Current Of Battery Pack | |
| Limited Charge Voltage | 58.4V | The Voltmeter Measures (number Of Strings * 32.65v (safe Charging Voltage Of Cell)) The Safe Charging Voltage Of Battery Pack | |
| Maximum Discharge Current | 100A | It Is Allowed To Discharge With The Maximum Discharge Current | |
| Discharge Cut-off Voltage | 44.8V | It Is The Load Voltage Of The Battery Pack To Terminate The Discharge (according To The Voltage Value Of The Battery Core Platform Discharge To The Discharge Cut-off) | |
| Operating Temperature Range | Charging:0~55℃ | Charge | |
| Discharging:-30~60℃ | Discharge | ||
| Storage Temperature Range | -20℃~25℃ | Recommended storage range ≤ 60 ± 25% RH | |
| Size/Weight Of Single Module | 450*442*177mm | 1 PCS, single mode group about 50kg ± 5% | |
