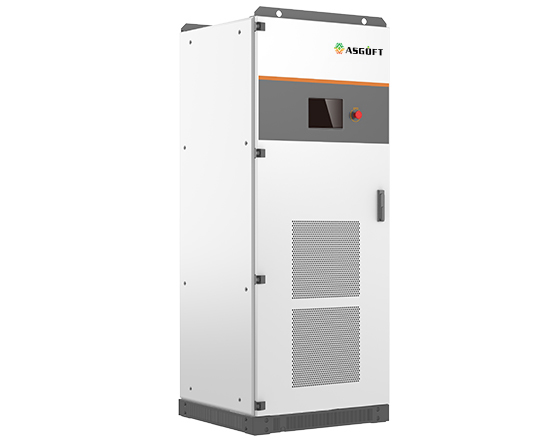

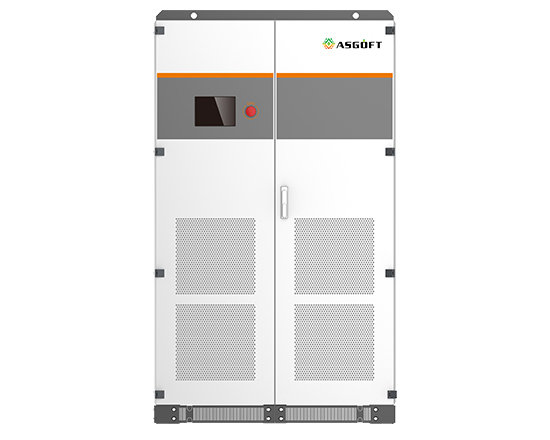

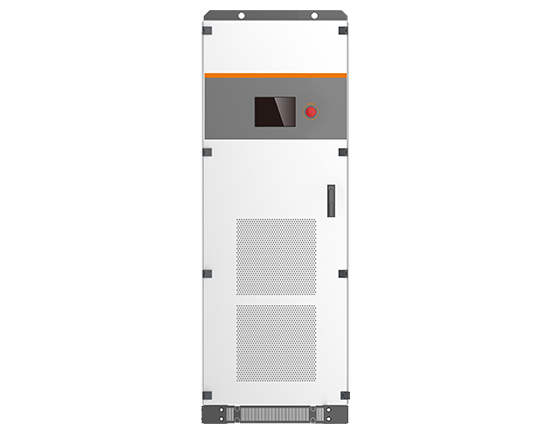

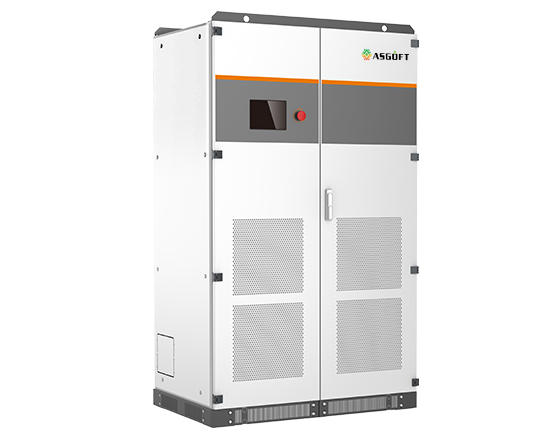

Energy Storage Ac (with Isolation)
——
Inverter Is Used To Convert Dc Electric Energy (battery, Storage Battery) Into Current
Product Features
Safe and reliable
Comply to international test certification
Flexible configuration
Support multiple sets of parallel use, covering wide power range of 30kW-3000kW;
Compatible with LFP , lead-acid and other batteries
Convenient operation and maintenance
Built-in simple EMS function, support remote maintenance and monitoring;
With grid-connected charge and discharge, off-grid independent inverter function;
Support on/off grid automatic switching
Highest efficiency of the product reaches 97.5%

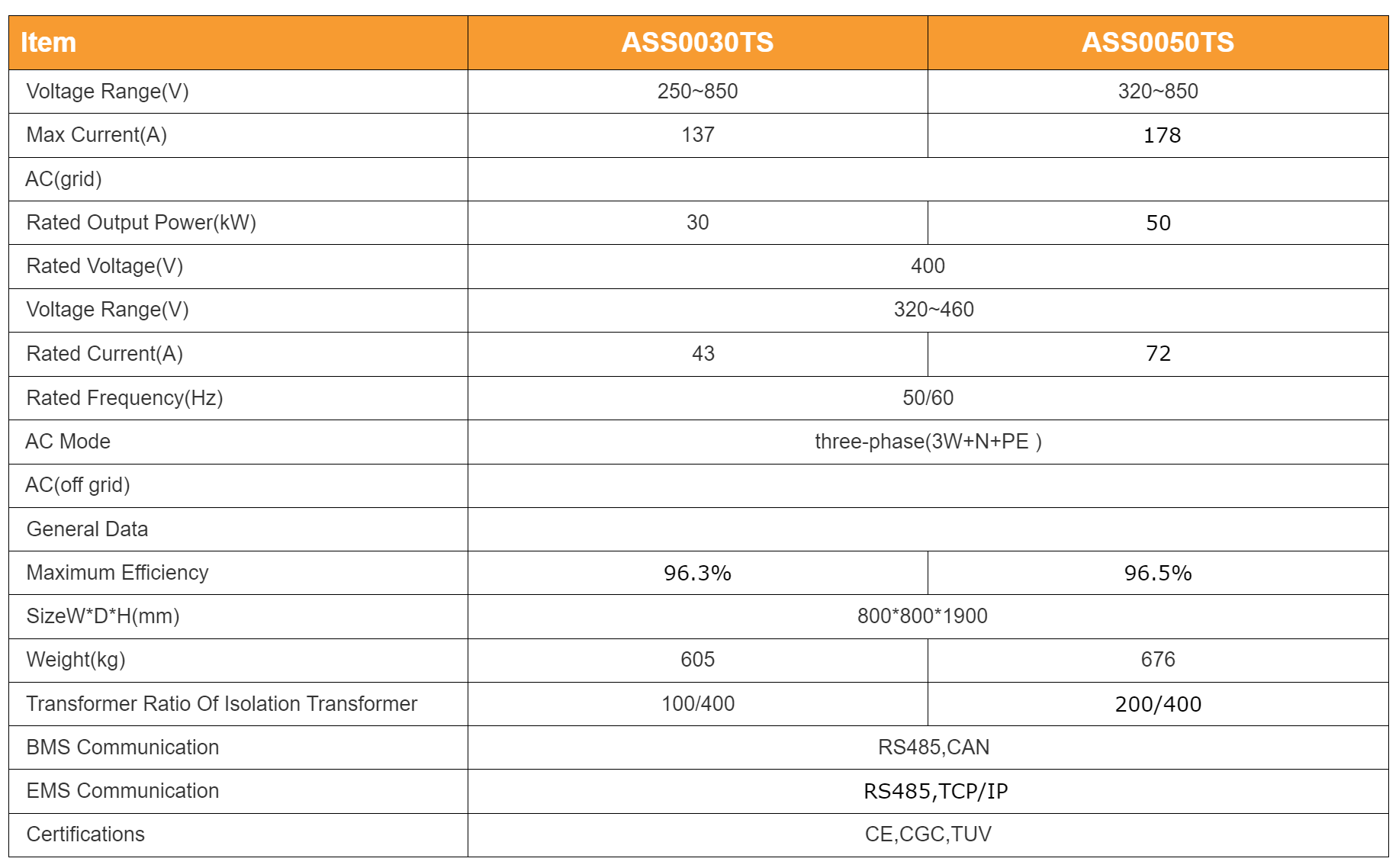

Product Parameters
| Item | ASS0030TS | ASS0050TS |
| Voltage Range(V) | 250~850 | 320~850 |
| Max Current(A) | 137 | 178 |
| AC(grid) | ||
|
Rated Output Power(kW) |
30 | 50 |
| Rated Voltage(V) | 400 | |
| Voltage Range(V) | 320~460 | |
| Rated Current(A) | 43 | 72 |
| Rated Frequency(Hz) | 50/60 | |
| AC Mode | three-phase(3W+N+PE ) | |
| AC(off grid) | ||
| General Data | ||
|
Maximum Efficiency |
96.3% | 96.5% |
| SizeW*D*H(mm) | 800*800*1900 | |
| Weight(kg) | 605 |
676 |
| Transformer Ratio Of Isolation Transformer | 100/400 | 200/400 |
| BMS Communication | RS485,CAN | |
| EMS Communication | RS485,TCP/IP | |
| Certifications | CE,CGC,TUV | |
