Energy Storage AC (without Isolation)
——
Inverter Is Used To Convert Dc Electric Energy (battery, Storage Battery) Into Current
Product Features
Safe and reliable
Comply to international test certification
Flexible configuration
Wide battery voltage range, support multiple battery access;
Reactive power and active power adjustable
Intelligent and efficient
The maximum efficiency reaches 98.7%;
With grid-connected charge and discharge, off-grid independent inverter function
Grid-level applications

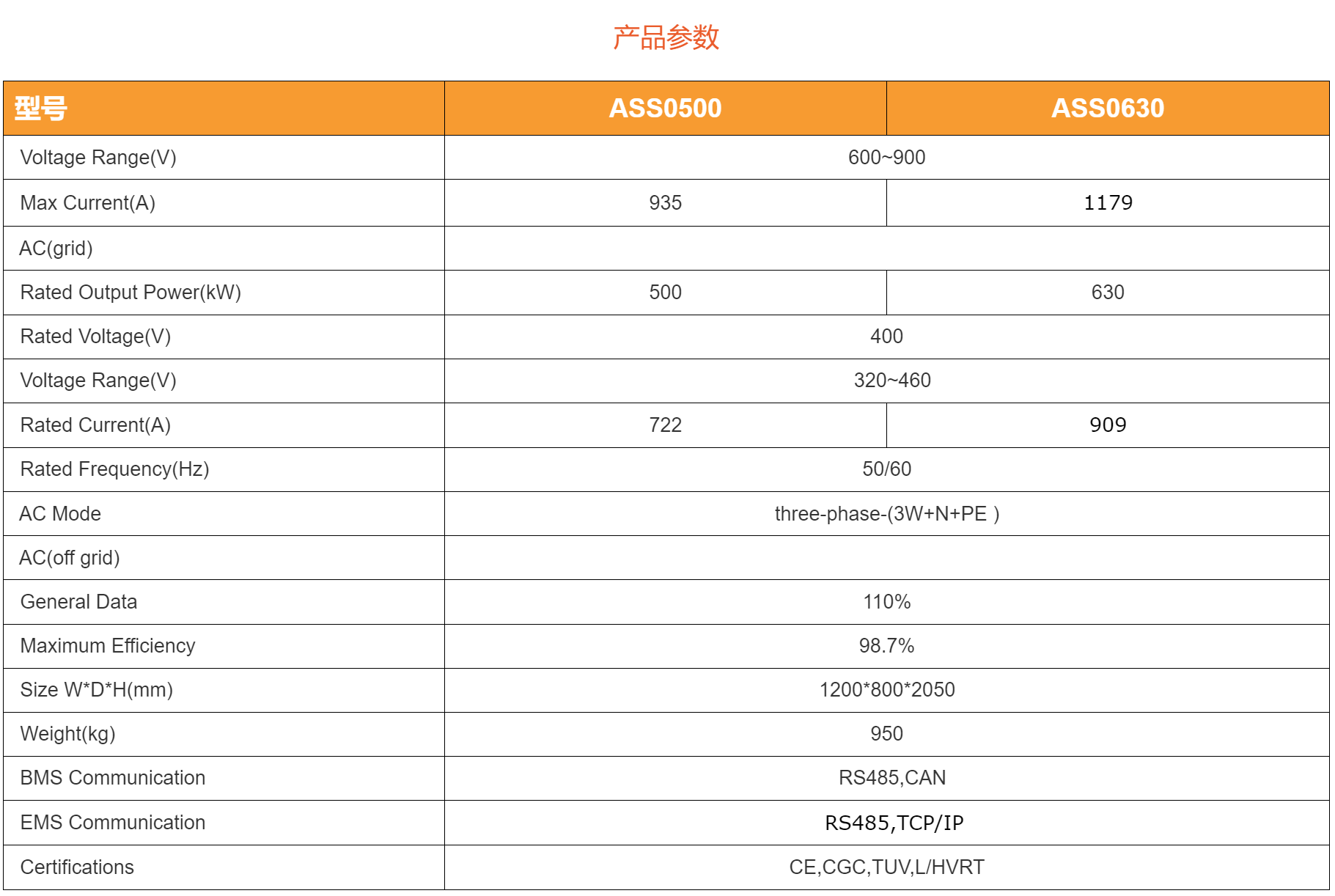

产品参数
| 型号 | ASS0500 | ASS0630 |
| Voltage Range(V) | 600~900 | |
| Max Current(A) | 935 | 1179 |
| AC(grid) | ||
|
Rated Output Power(kW) |
500 | 630 |
| Rated Voltage(V) | 400 | |
| Voltage Range(V) | 320~460 | |
| Rated Current(A) | 722 | 909 |
| Rated Frequency(Hz) | 50/60 | |
| AC Mode | three-phase-(3W+N+PE ) | |
| AC(off grid) | ||
| General Data | 110% | |
|
Maximum Efficiency |
98.7% | |
| Size W*D*H(mm) | 1200*800*2050 | |
| Weight(kg) | 950 | |
| BMS Communication | RS485,CAN | |
| EMS Communication | RS485,TCP/IP | |
| Certifications | CE,CGC,TUV,L/HVRT | |
